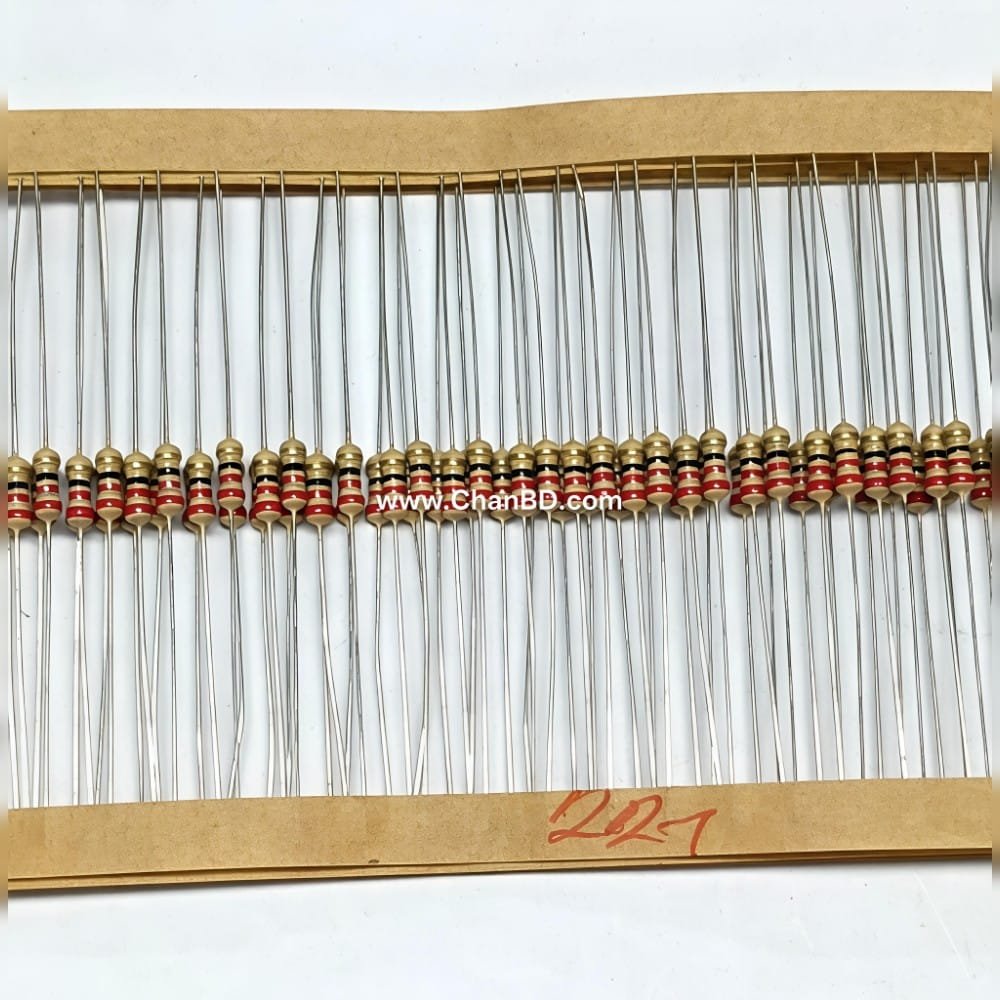

1/4w22R Resistor (4-Band-R) (Metal oxide film) Code: 37208860

A 1/4 watt 22-ohm resistor is a standard passive component used to limit current and divide voltage in electronic circuits. It safely handles up to 0.25W of power and features a color code of Red, Red, Black, Gold, and Brown.

Key Specifications

• Resistance Value:22 ohms (Ω)
• Power Rating:25 watts (1/4 W)
• Tolerance Options:Typically ± 5% (Carbon Film) or ± 1% (Metal Film)
• Mounting Type:Through-hole (Axial leads)
• Max Working Voltage:250V – 350V

Physical & Material Properties

• Composition:Carbon film or Metal film
• Operating Temperature:-55°C to +155°C
• Dimensions:~6 mm length, ~2.3 mm diameter

Color Band Guide (4-Band vs 5-Band)

• 4-Band:Red (2), Red (2), Black (Multiplier × 1), Gold (Tolerance ± 5%)
• 5-Band (Precision):Red (2), Red (2), Black (0), Gold (Multiplier × 0.1), Brown (Tolerance ± 1%)
