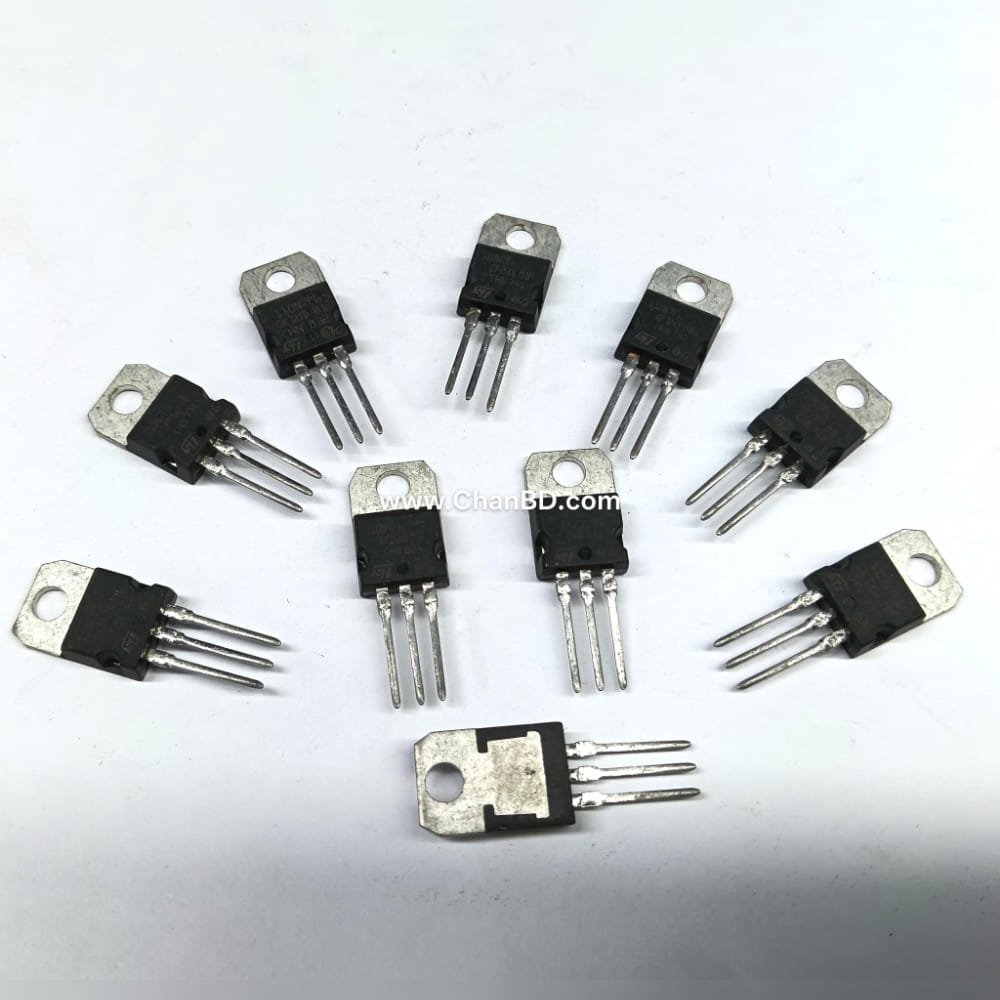

110N7Fb / STP110N7F6 / 110N7 (ST) Mosfet Transistor (SH) TO-220 Code: 01926038

The 110n7fb (commonly labeled as STP110N7F6) is an N-channel power MOSFET manufactured by STMicroelectronics on AllDatasheet utilizing STripFET™ F6 technology. It is designed for high-efficiency switching applications.

Key Specifications

• Drain-Source Voltage :68 V
• Continuous Drain Current :110 A (at package limit)
• Static Drain-Source On-Resistance :~0.0055 Ω
• Package Type:TO-220AB (3-pin plus tab)
• Technology:Trench gate structure for low gate charge and reduced conduction losses

Features & Applications

• Features:Very low on-resistance, low gate drive power loss, and high avalanche ruggedness.
• Applications:DC-DC converters, synchronous rectification, and high-performance motor drivers or switching circuits.
