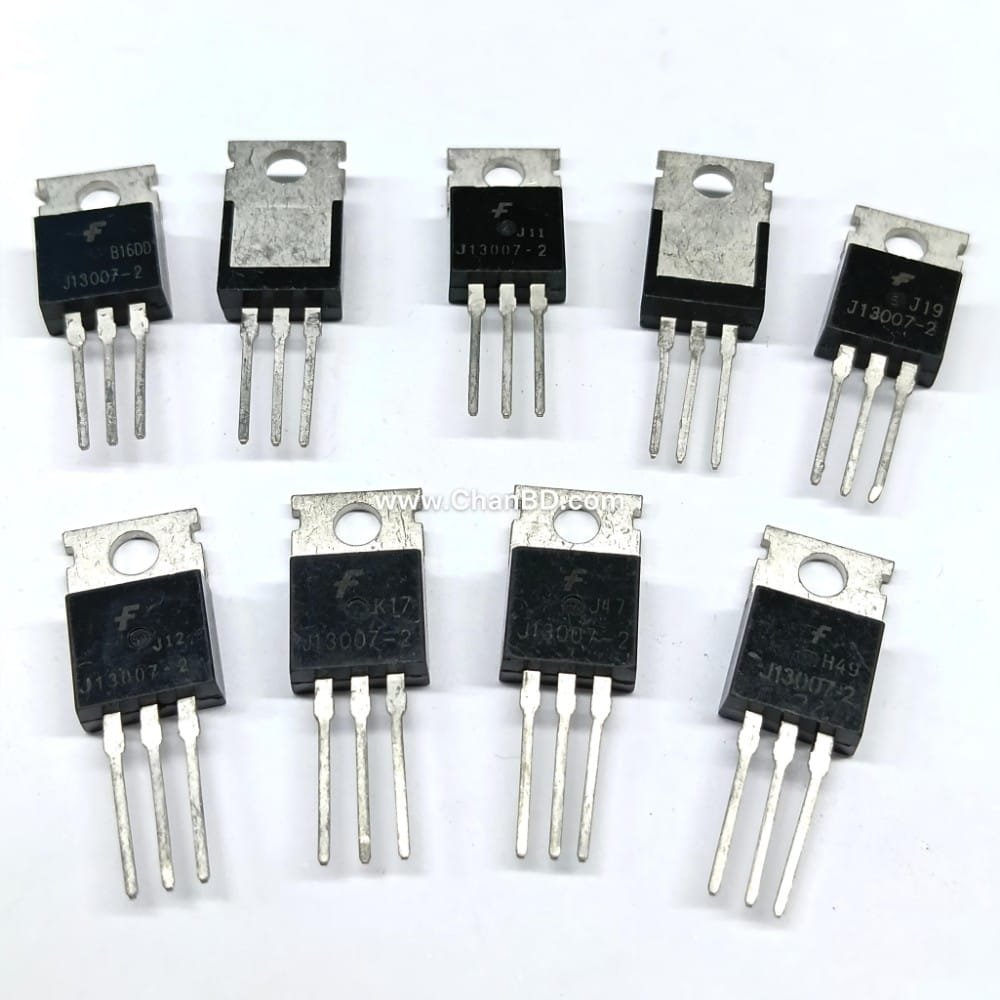

13007 / MJE13007 / J13007 (F) Transistor TO-220 Code: 63695130

The 13007 (often prefixed as MJE13007 or E13007) is a high-voltage, high-speed NPN silicon power transistor. It is widely used in inductive switching circuits, inverters, motor controls, and electronic ballasts.

Key Technical Specifications

• Transistor Type:NPN
• Package Type:TO-220AB
• Max Collector-Emitter Voltage :400V
• Max Collector-Base Voltage :700V
• Continuous Collector Current :Up to 8A
• Peak Collector Current :16A
• Power Dissipation :80W = 25C
• DC Current Gain):8 to 60
• Transition Frequency :4 MHz
• Operating Temperature:-65° C to +150° C

Pin Configuration

Looking at the front of the TO-220 package (with the metal tab at the top and text facing you):

1. Pin 1:Base (B) – The control pin
2. Pin 2:Collector (C) – The middle pin, internally connected to the metal tab
3. Pin 3:Emitter (E) – The output pin

Replacements & Equivalents

If you are looking to substitute an MJE13007, you can use the following compatible alternatives:

• ST13007
• KSE13007
• BUJ105A
• 2SC2335
• 2SC2553
