The 22NM60N (commonly part of the STMicroelectronics STF22NM60N/STP22NM60N Datasheet) is a 600V N-channel power MOSFET utilizing MDmesh™ II technology, featuring a drain current of 16A and a low on-resistance of 0.22 ohms.

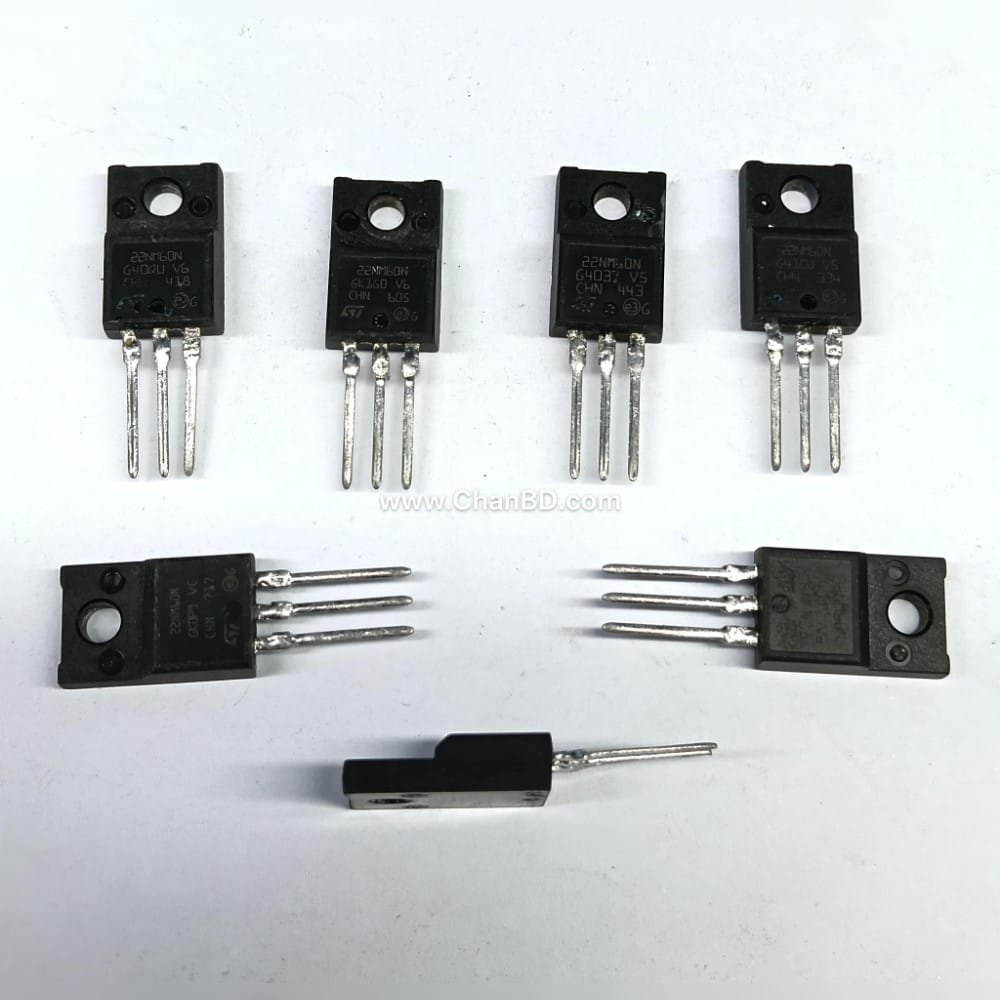

22NM60FP / STF22NM60N / STP22NM60N / 22n60 (ST) Mosfet Transistor (SH) TO-220F Code: 69163220

Name: 22NM60FP / STF22NM60N / STP22NM60N / 22n60 (ST) Mosfet Transistor (SH) TO-220F Code: 69163220
Brand: C sound
SKU: 19854
Availability: InStock

C sound CHAN ST Semiconductor

Original price was: 80.00৳ .Current price is: 69.00৳ .

Categories: AC-DC INVERTER ACCESSORIES, ACCESSORIES, TRANSISTOR

Description
Reviews (0)

The 22NM60N (commonly part of the STMicroelectronics STF22NM60N/STP22NM60N Datasheet) is a 600V N-channel power MOSFET utilizing MDmesh™ II technology, featuring a drain current of 16A and a low on-resistance of 0.22 ohms.

Key Specifications

Drain-Source Voltage :600V (up to 650V peak)
Continuous Drain Current :16A
Drain-Source On-Resistance :22 Ω max
Gate-Source Voltage :±30V
Maximum Power Dissipation :30W (TO-220FP) up to 125W (TO-220)

Physical and Design Features

Technology Type:MDmesh™ II (low input capacitance and gate charge)
Packages Available:TO-220FP (fully isolated), TO-220, D²PAK, and I²PAK
Testing:100% avalanche tested
Common Uses:High-efficiency switching power supplies, DC-DC converters, and power factor correction (PFC) units
