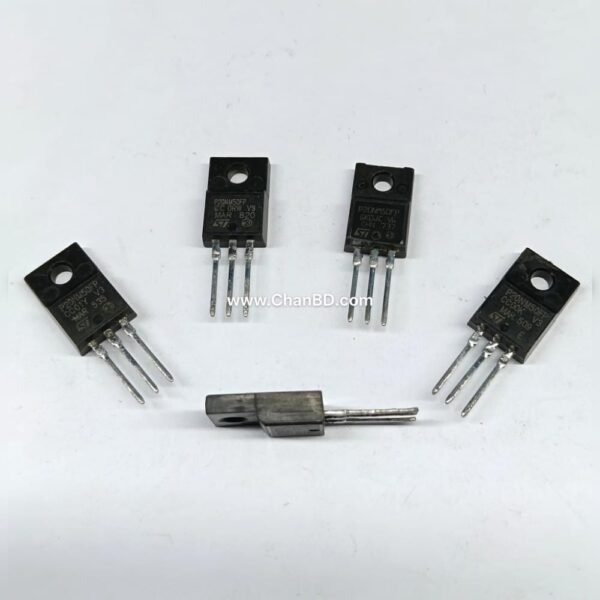

The 20NM50 (often written as 20N50 or 20nm50n) is an N-channel power MOSFET featuring a 500V drain-source voltage, 20A continuous drain current, and low on-resistance of about 0.20 to 0.25 ohms. It uses advanced super-junction or MDmesh technology for fast switching.
P20NM50FP (ST) / F20NM50Z / SSS20N50C / 20n50 (SH) Transistor TO-220F Code: 26113214 Original price was: 80.00৳ .Current price is: 69.00৳ .

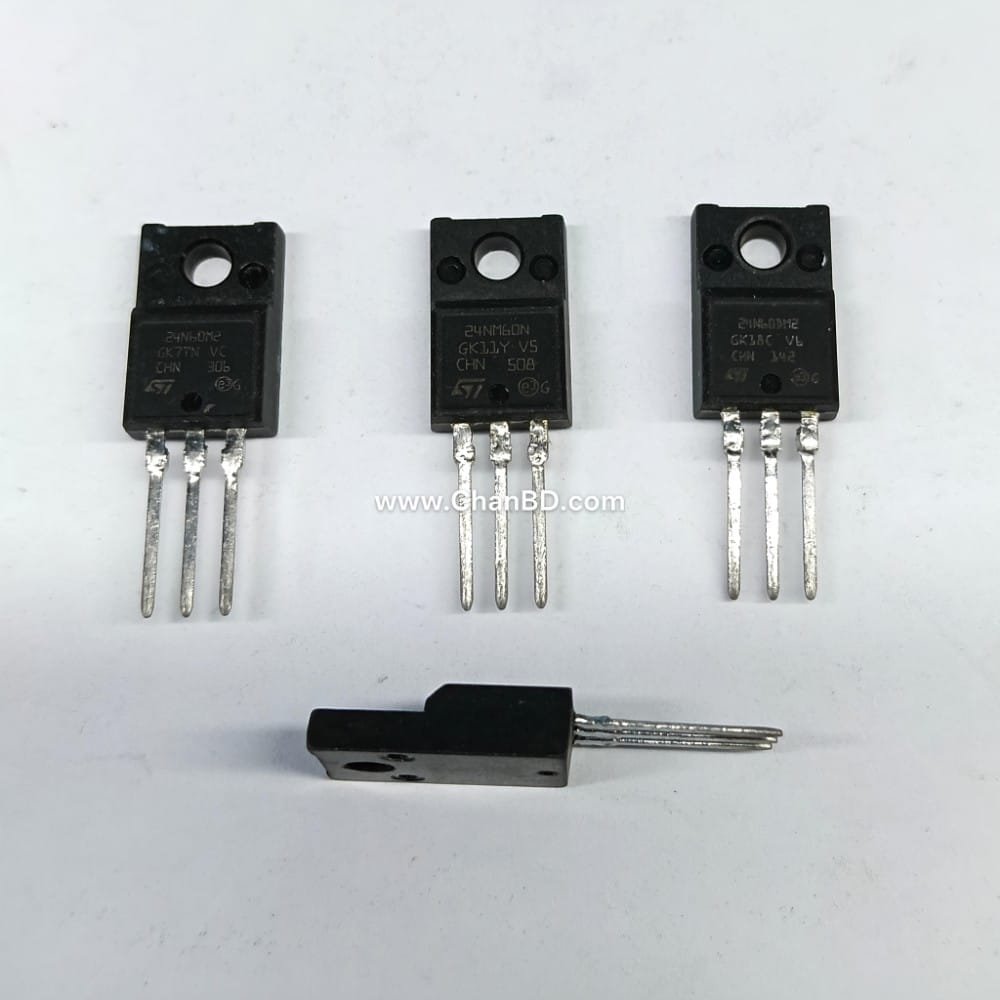

24NM60N / 24N60M2 / 24n60 (ST) Mosfet Transistor (SH) TO-220F Code: 31321920

C sound CHAN ST Semiconductor

Original price was: 80.00৳ .Current price is: 69.00৳ .

Categories: ,

The STMicroelectronics 24NM60N is an N-channel power MOSFET built with MDmesh II technology, featuring a 600V drain-source voltage rating, a 17A continuous drain current, and a low on-resistance of about 0.168 ohms.

Key Electrical Specifications

  • Type:N-channel unipolar power MOSFET
  • Drain-Source Voltage :600V
  • Continuous Drain Current :17A
  • On-State Resistance :~0.168 Ω typical (0.19 Ω max)
  • Gate-Source Voltage :±30V max
  • Technology:Second-generation MDmesh

Packaging and Physical Options

  • STF24NM60N:TO-220FP (fully isolated package)
  • STI24NM60N:I²PAK
  • STP24NM60N:TO-220 (standard through-hole)
  • STW24NM60N:TO-247 (high-power through-hole)
  • STB24NM60N:D²PAK (surface mount)

Common Applications

  • High-efficiency switch-mode power supplies (SMPS)
  • DC-DC power converters
  • Motor control drivers
  • Power factor correction (PFC) units
