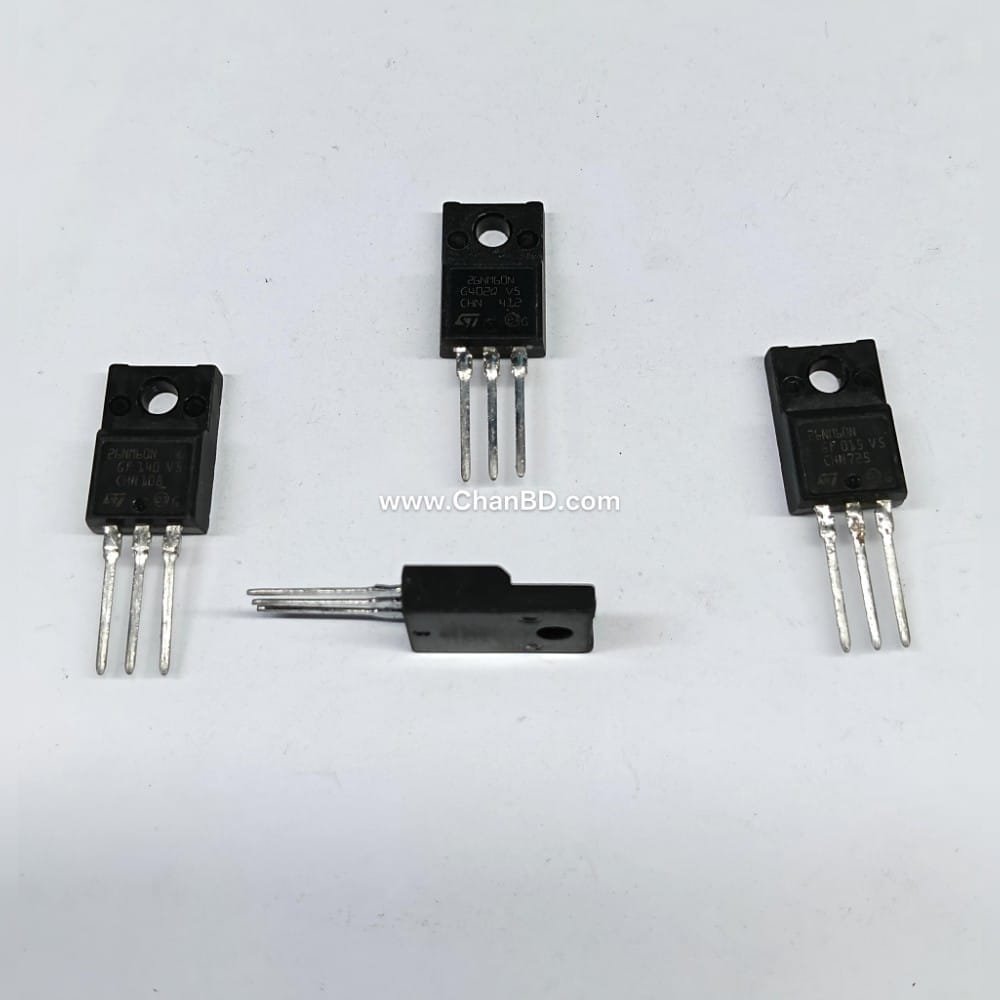

26NM60N / STF26NM60N / 26N60M2 / 26n60 (ST) Mosfet Transistor (SH) TO-220F Code: 38937811

The STMicroelectronics STF26NM60N Datasheet provides official specifications for the 26NM60N, which is a 600 V, 20 A N-channel power MOSFET. It uses MDmesh II technology for high-efficiency switching.

Key Specifications

• Drain-Source Voltage :600 V
• Continuous Drain Current :20 A at 25 °C
• On-Resistance :135 Ω (typical), 0.165 Ω (maximum)
• Gate-Source Voltage :±25 V
• Technology:MDmesh II

Features & Common Uses

• Features:Low input capacitance, low gate charge, 100% avalanche tested.
• Package Types:Available in TO-220, TO-220FP, D²PAK, and TO-247 configurations depending on the exact part variant (STP26NM60N, STF26NM60N, etc.).
• Applications:Switch-mode power supplies (SMPS), DC-DC converters, and high-efficiency power converters.
