4pin Mini XLR Connector Male/Female Code: 35800896 Brand: C SOUND

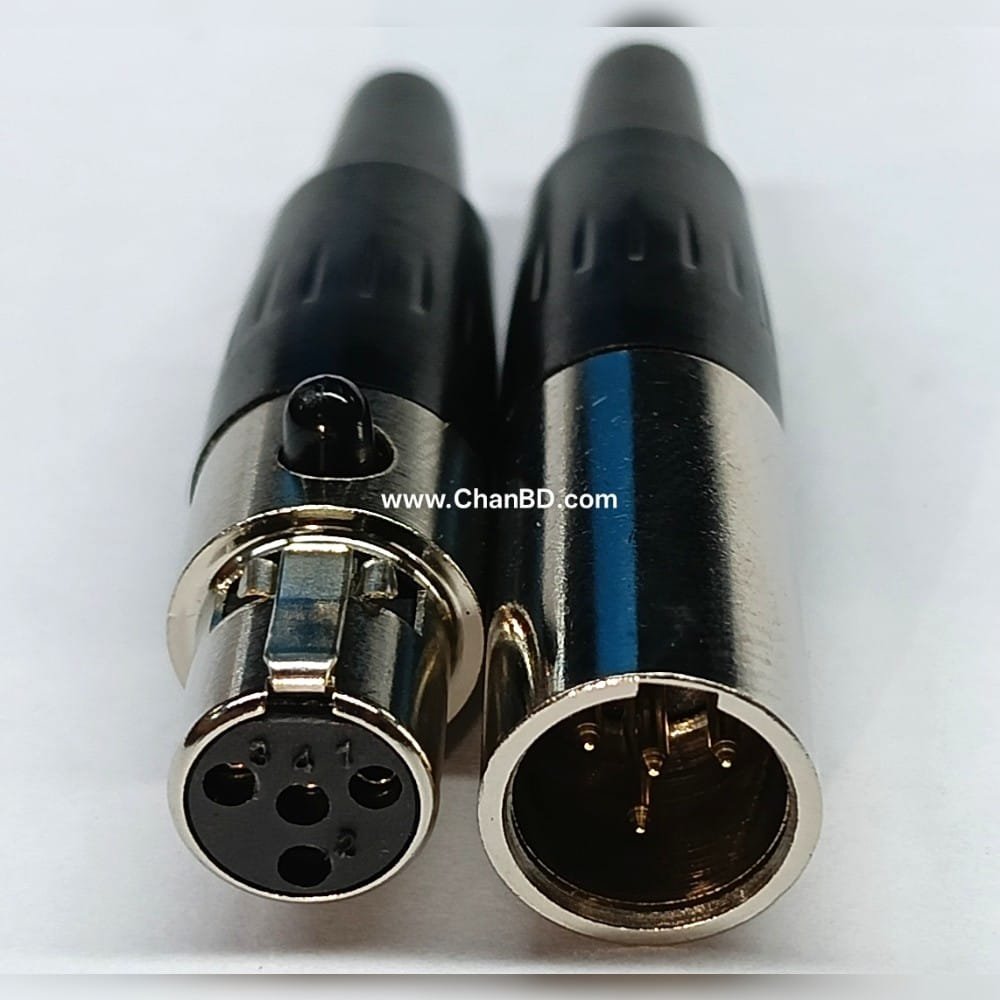

4-pin mini XLR connectors (often referred to as TA4 connectors) are compact, multi-pin connections widely used in professional audio, including lavalier microphones, wireless bodypack transmitters, and custom mechanical keyboards.

Key Details & Specifications

• Pin Configuration: Features 4 individual pins on the male connector (TA4M) and 4 corresponding receptacles/holes on the female connector (TA4F).
• Gender Terminology: In line with standard XLR conventions, the male connectorhas the pins protruding, while the female connector has the receiving sockets.
• Connection Lock: They utilize a push-pull locking mechanism that snaps into place, ensuring the cable cannot be accidentally pulled out during live performances or production.
• Pinout Standard: There is no universal standard, but for wireless bodypack microphones (like Shure), the typical pinout is:

• Pin 1: Ground / Shield
• Pin 2: Bias Voltage / +5V (for electret mics)
• Pin 3: Audio Signal
• Pin 4: Ground / Shield (often tied to Pin 1)
  • Durability: Standard construction includes a rugged zinc alloy or nickel-plated brass shell with robust solder-cup terminals for wire gauges typically up to 2.5mm OD.
