5pin 12v Small Relay / 5pin 12v Yellow Relay (JQC-3FC (T73) DC12V) Code: 46932595

Original price was: 40.00৳ .Current price is: 35.00৳ .

Categories: ACCESSORIES, RELAY, SWITCH

Description
Reviews (0)

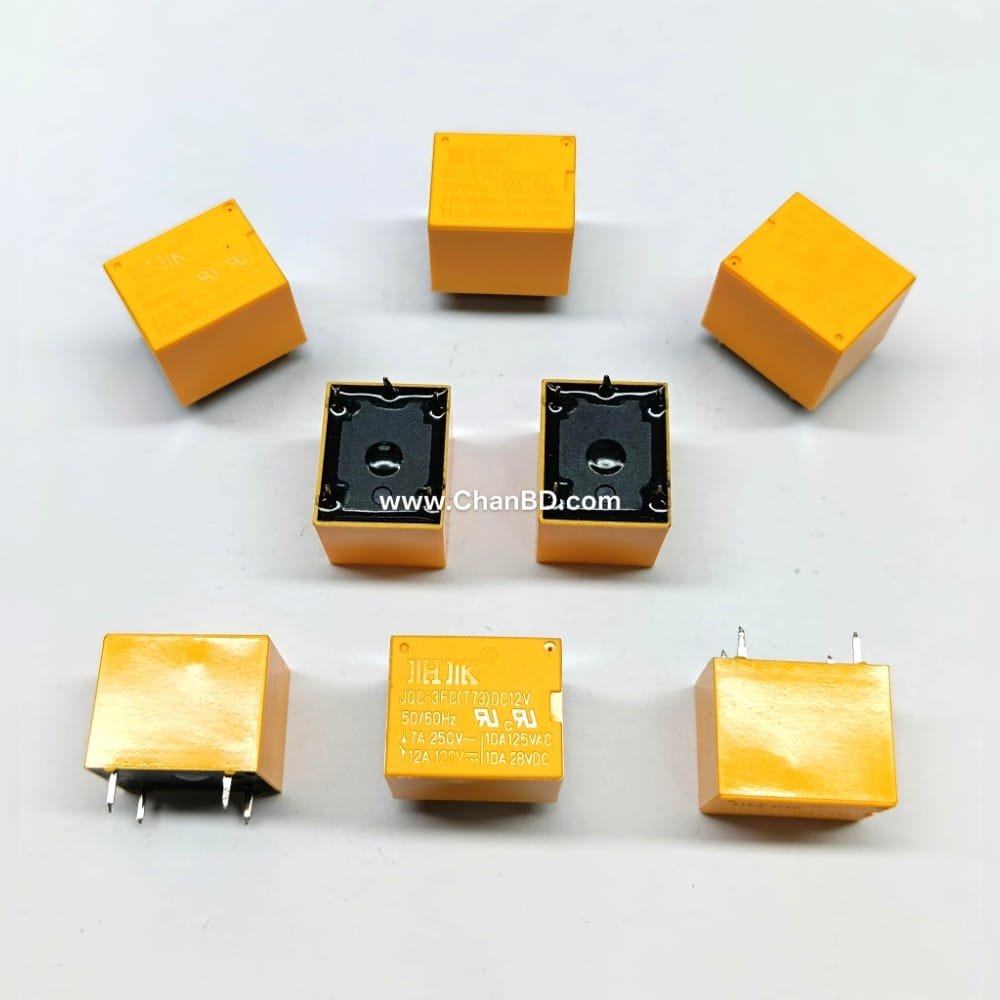

The JQC-3FC (T73) DC12V is a compact, 5-pin, “sugar cube” SPDT power relay widely used in PCBs for Arduino projects, UPS systems, and appliances. It requires a 12V DC trigger voltage and safely switches high-voltage AC or DC loads.

Key Specifications

Coil Voltage:12V DC
Nominal Coil Current: 70mA (coil resistance is generally 400 Ω)
Maximum AC Load:7A at 250VAC or 10A at 125VAC
Maximum DC Load:10A at 28VDC or 12A at 120VDC
Configuration:SPDT (Single Pole Double Throw) with Normally Open (NO) and Normally Closed (NC) contacts
Switching Times:10ms (operate) and 5ms (release)
Dimensions:~ 19×15×15mm

Pinout Configuration (Bottom View)

Coil (2 pins):Located on the bottom left and right sides. They receive the 12V DC and Ground to activate the magnetic coil.
Common (COM):The center pin on the opposite side.
Normally Closed (NC):The pin directly connected to COM when the relay is unpowered.
Normally Open (NO):The pin connected to COM only when the 12V coil is energized.
