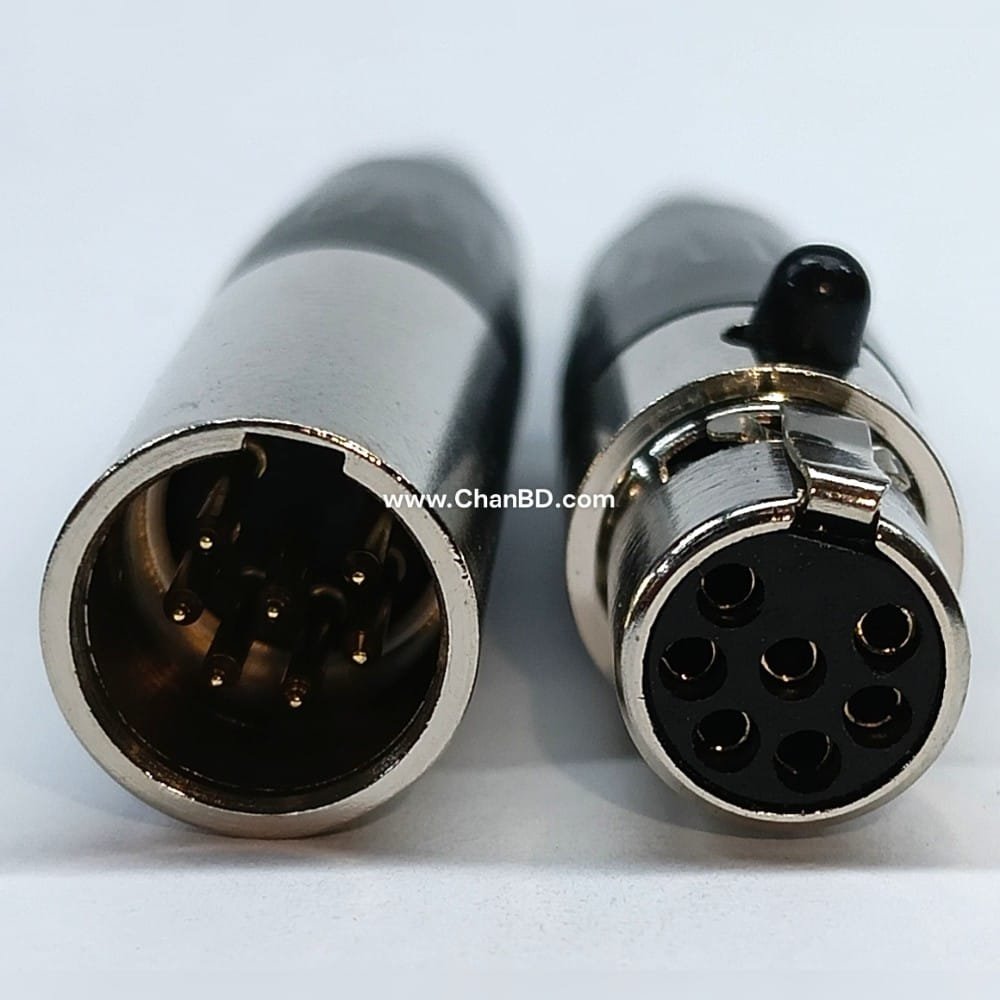

A 7-pin mini XLR connector (male and female) is a miniature, multi-pin circular connector typically used in professional audio, high-end tube microphones, and industrial communications. These connectors feature a compact ~9.5mm barrel diameter, a push-to-lock latching mechanism, and solder-cup pins to accommodate small-gauge wires (usually 28 AWG).

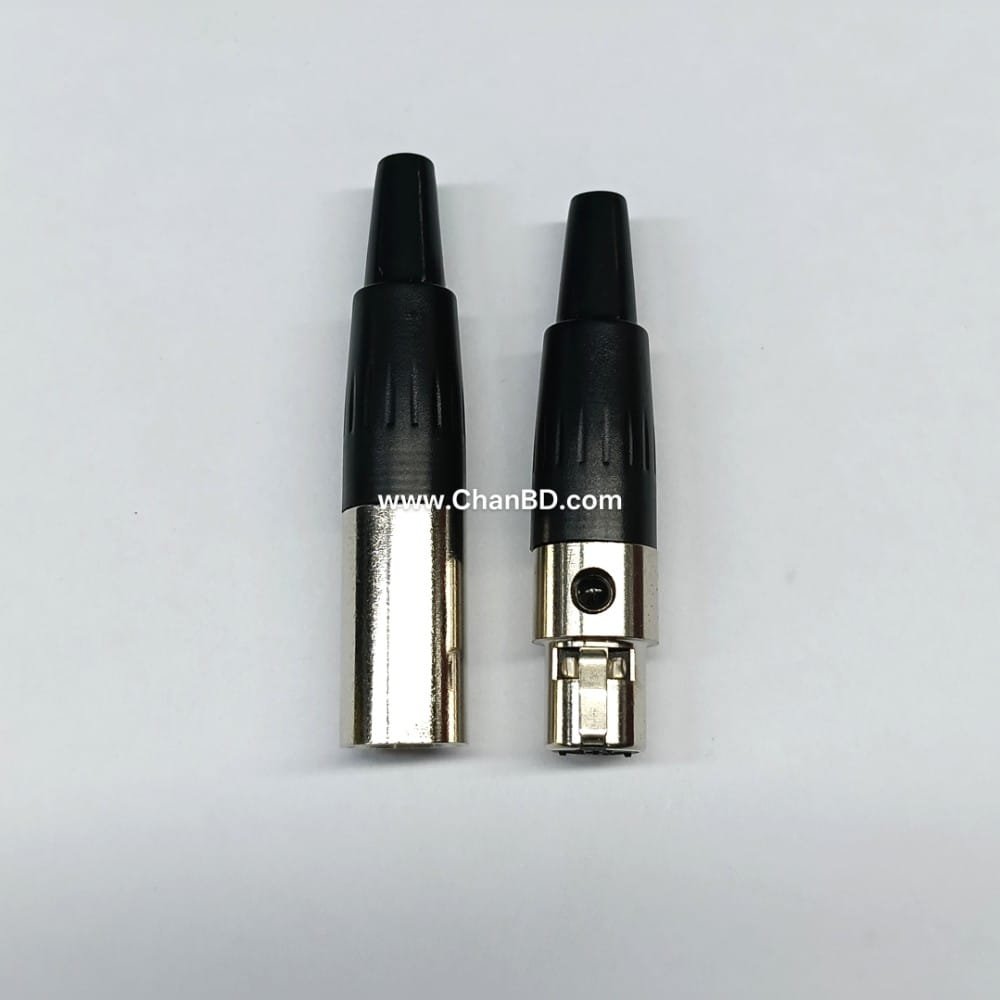

7pin Mini XLR Connector Male/Female Code: 81054613 - Image 2

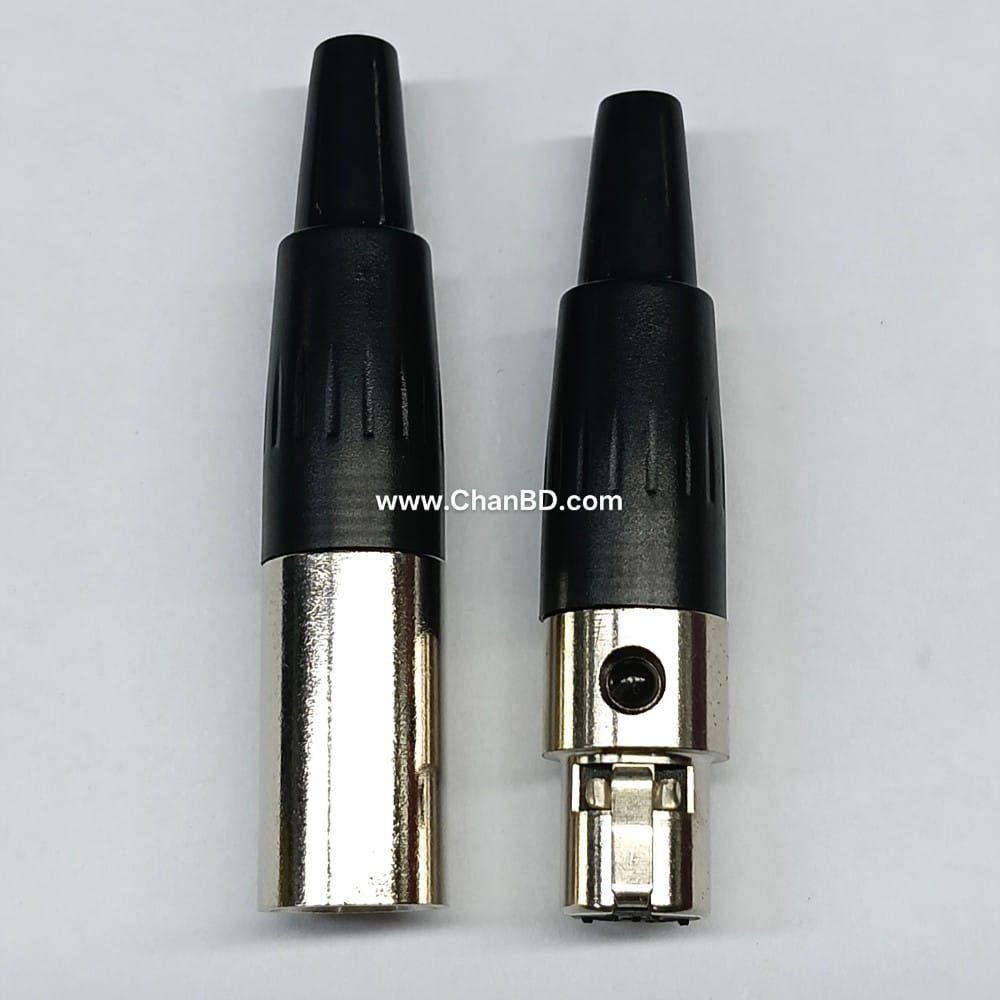

7pin Mini XLR Connector Male/Female Code: 81054613 - Image 3
Click to enlarge
A 7-pin mini XLR connector (male and female) is a miniature, multi-pin circular connector typically used in professional audio, high-end tube microphones, and industrial communications. These connectors feature a compact ~9.5mm barrel diameter, a push-to-lock latching mechanism, and solder-cup pins to accommodate small-gauge wires (usually 28 AWG).
7pin Mini XLR Connector Male/Female Code: 81054613 - Image 2
7pin Mini XLR Connector Male/Female Code: 81054613 - Image 3

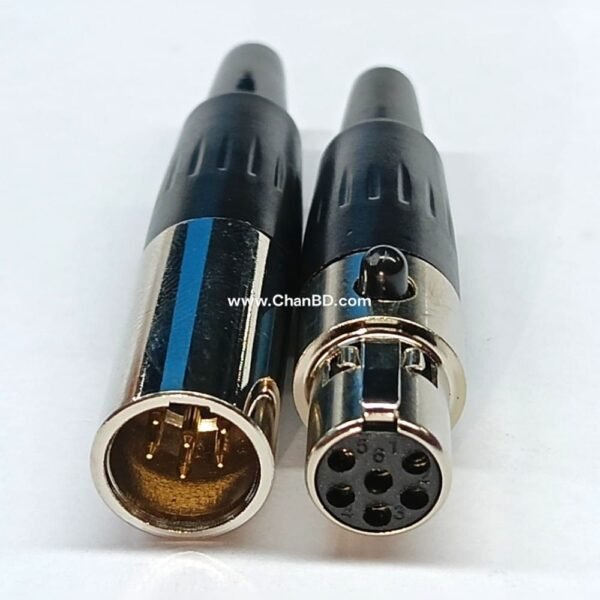

A 6-pin mini XLR connector (often called a Tiny XLR or Tini-QG) is a compact, multi-contact connection commonly used for microphones, professional audio gear, and custom mechanical keyboards. It features a push-pull latching mechanism and solder cup terminations for 28 AWG wires.
6pin Mini XLR Connector Male/Female Code: 94519260 Original price was: 450.00৳ .Current price is: 399.00৳ .
Back to products
The TDA2003 is a popular, monolithic Class-AB audio power amplifier. Famous for its use in car radios and DIY electronics, it provides up to 10W of continuous audio output. It requires very few external components, is highly cost-effective, and is breadboard-friendly.
TDA2003A IC TO-220 (5pin) Code: 79530209 Original price was: 40.00৳ .Current price is: 30.00৳ .

7pin Mini XLR Connector Male/Female Code: 81054613

C sound CHAN

Original price was: 450.00৳ .Current price is: 399.00৳ .

Categories: , ,

A 7-pin mini XLR connector (male and female) is a miniature, multi-pin circular connector typically used in professional audio, high-end tube microphones, and industrial communications. These connectors feature a compact ~9.5mm barrel diameter, a push-to-lock latching mechanism, and solder-cup pins to accommodate small-gauge wires (usually 28 AWG).

Because mini XLR configurations are highly customized by equipment manufacturers, there is no universal pinout for 7-pin variants. Depending on the device (e.g., specific studio microphones or bodypack transmitters), pins are typically mapped to carry combinations of the following:

  • Pin 1:Audio Ground / Shield
  • Pin 2:B+ High Voltage (power supply)
  • Pin 3 & 4:Balanced Audio Signals (Positive and Negative)
  • Pin 5:Pattern / Control Voltage
  • Pin 6 & 7:Heater circuit or Return paths



0 reviews
