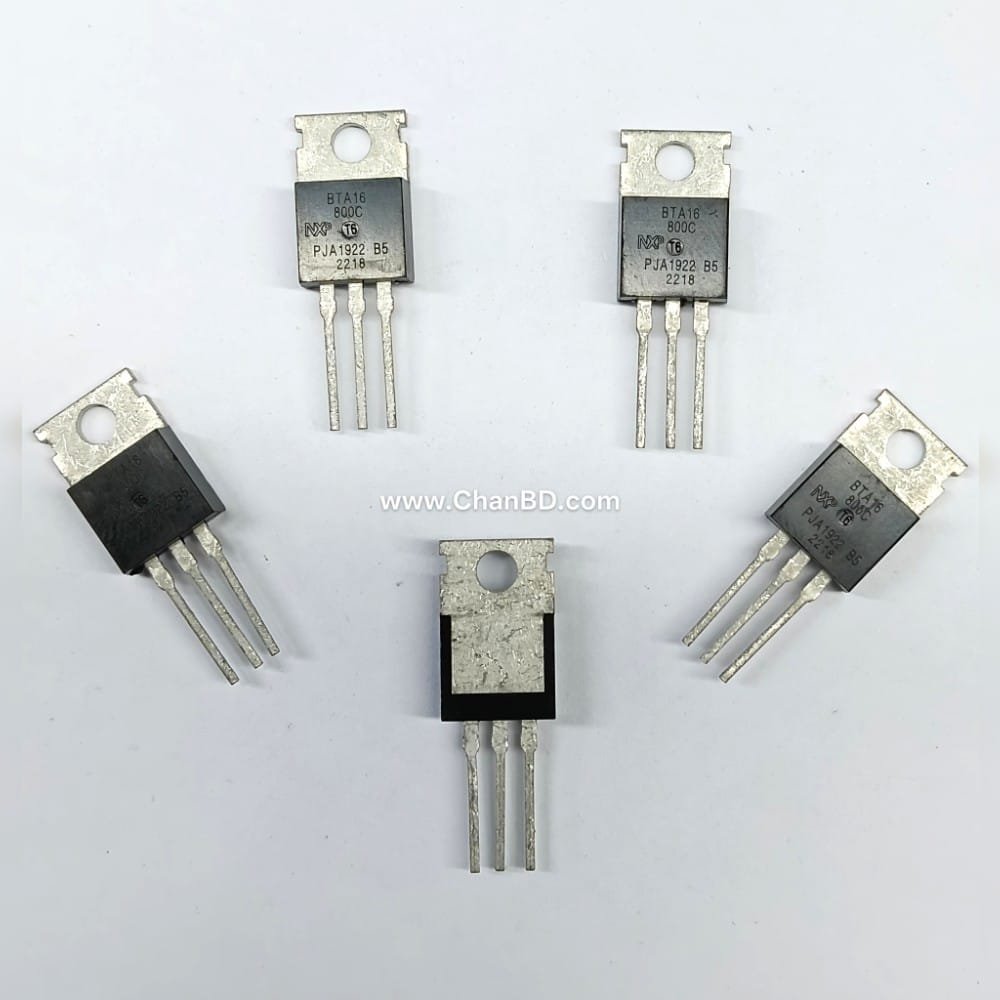

BTA16 800C Transistor 16A800V TO-220 (NXP) Code: 69010508

The BTA16-800C is a 16-amp, 800-volt TRIAC (bi-directional triode thyristor) designed for AC power switching and phase control. It features an electrically isolated mounting tab, allowing it to be safely attached directly to a grounded heatsink without extra insulators.

Key Specifications

• RMS On-State Current :16 A
• Repetitive Peak Off-State Voltage :800 V
• Gate Trigger Current : 25 mA (standard ‘C’ quadrant sensitivity)
• Package Type:TO-220AB (through-hole)
• Operating Junction Temp :-40°C to +125°C
• Surge Current :160 A – 168 A (for 20ms)

Common Applications

• AC static relays
• Light dimmers
• Motor speed controllers
• Heating regulation
• Small appliance control

Pinout Configuration (TO-220AB)

1. Main Terminal 1 (MT1)
2. Main Terminal 2 (MT2)
3. Gate (G)
