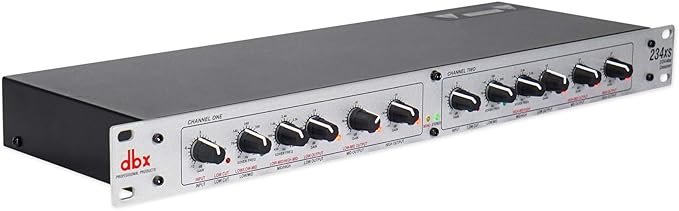

dbx 234xs Crossover By HARMAN (China) Code: 12321310

The dbx 234xs is a professional 2-way/3-way stereo or 4-way mono audio crossover. It splits a full audio signal into different frequency bands so that specific speakers (like subwoofers, mid-range speakers, and tweeters) only receive the sounds they are meant to play.

Key Features and Specifications

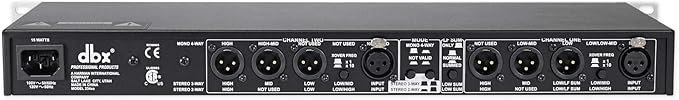

• Connectivity:Features balanced XLR inputs and outputs for professional, low-noise signal transmission.
• Filter Type:Uses 24dB per octave Linkwitz-Riley filters, which are the industry standard for seamless frequency transitions.
• Subwoofer Control:Includes a summed low-frequency output specifically for subwoofers.
• Filter Options:Includes a 40Hz low-cut (high-pass) filter to remove unwanted ultra-low rumble and x10 range switches for better frequency control.
• Phase Control:Provides a phase reverse switch on all outputs to fix timing issues between different speakers.

How it Works

Think of an audio crossover like a traffic cop for sound. A full audio track is like a full carload of people. A crossover tells the “low pitch” people to get out at the subwoofer station, the “mid pitch” people to get out at the main speaker station, and the “high pitch” people to get out at the tweeter station. By splitting the work, your amplifiers can use all their power on the sounds they do best, reducing distortion.
