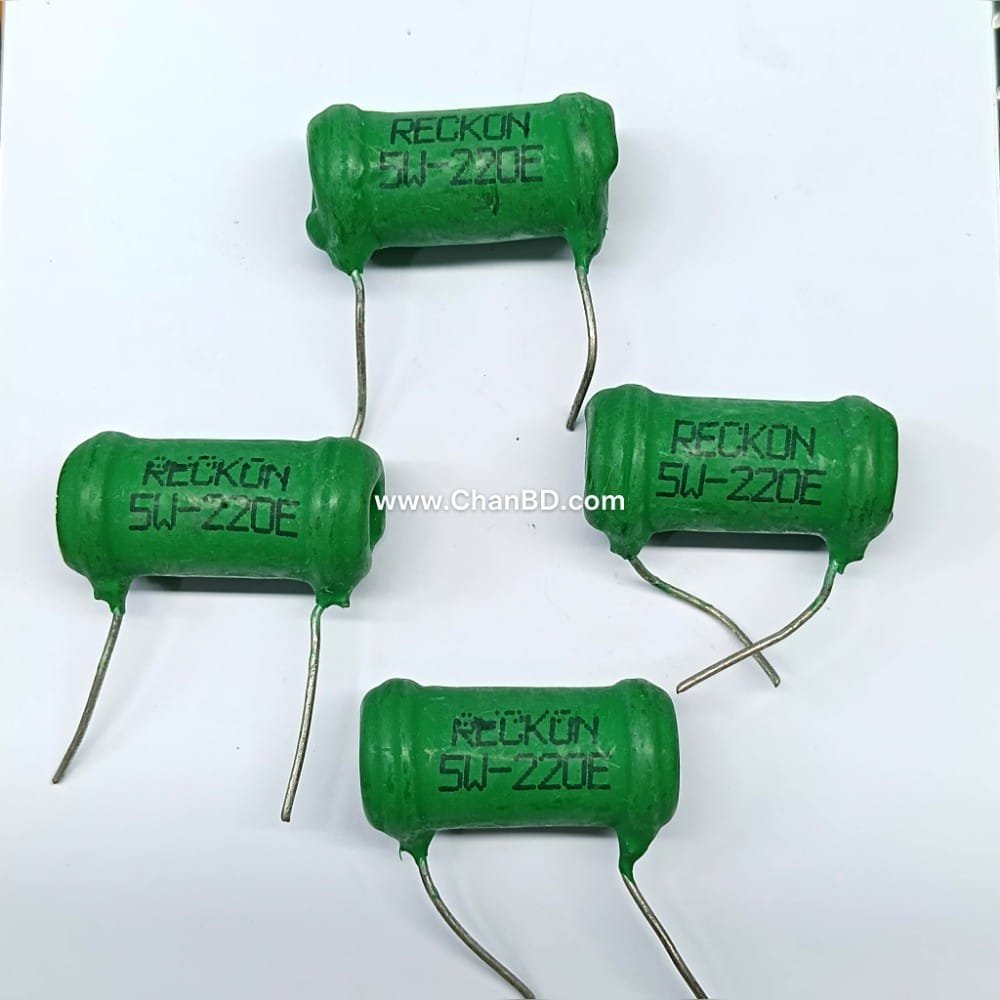

Indian 5w220E Green Resistor Reckon Code: 38911526

A 5W 220E (220-ohm, 5-watt) green-coated or cement-sealed power resistor—frequently manufactured by Indian component brands like Stead or Reckon—is an axial through-hole wirewound resistor designed for high heat dissipation and current-limiting in power circuits.

 Core Specifications

• Resistance Value:220 Ω ( denoted as 220E or 220R where E stands for Ohms)
• Power Rating:5 Watts (handles higher thermal loads than standard carbon-film resistors)
• Tolerance:± 5% (standard) or ± 10% depending on exact batch/manufacturer
• Construction Type:High-power wirewound (Nichrome or Nickel-Chromium alloy wire wound on an alumina/porcelain ceramic core)
• Body Coating:High-temperature green silicone, ceramic, or flameproof cement compound
• Approximate Dimensions:Length ~22mm to 26mm, Width/Height ~9mm

 Applications & Behavior

• Max Continuous Current:≈ 150 mA
• Max Working Voltage:Up to 500V DC
• Common Uses:Power supply circuits, audio amplifiers, snubber configurations, and general LED/transistor load-testing.
