Indian 5wE33 Ceramic Resistor Code: 61422933

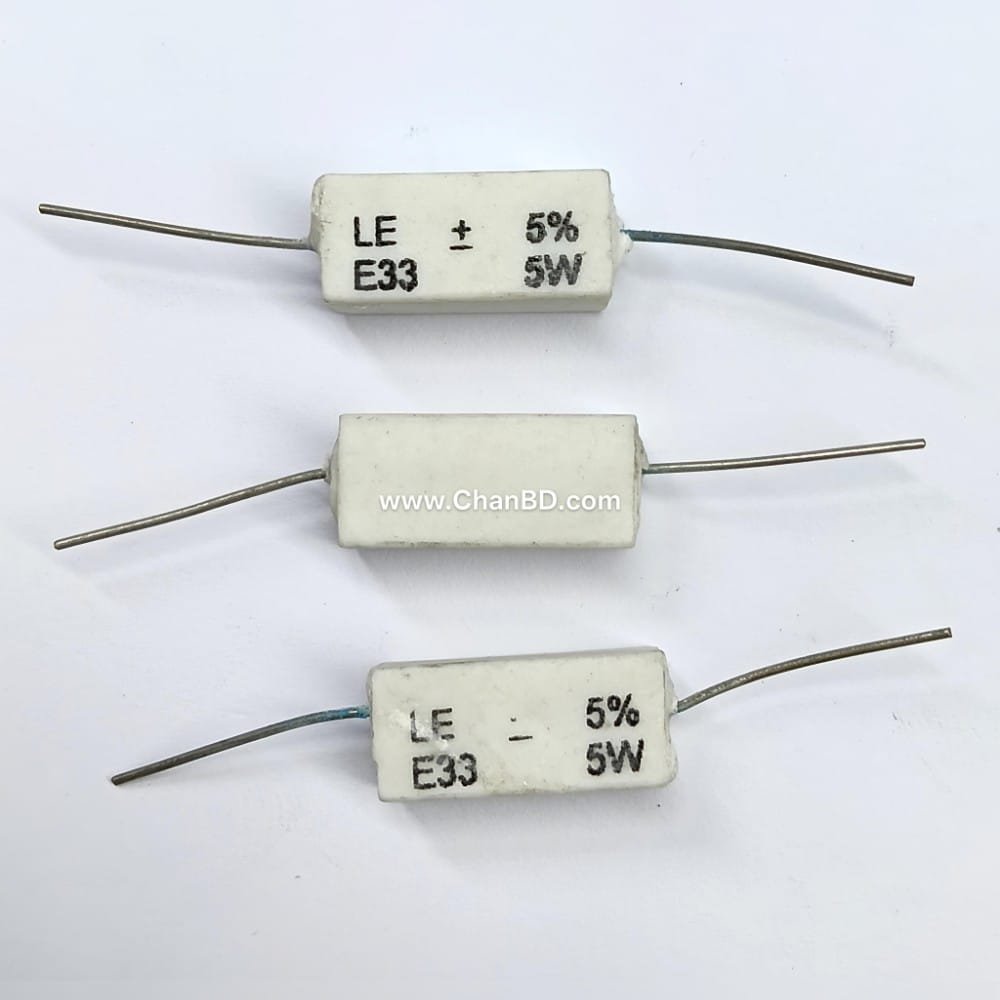

An E33 5W Indian cement resistor represents a 0.33-ohm, 5-watt wirewound power component packaged in a ceramic block. In component coding, the leading “E” or “E33” denotes a fractional value of 0.33 Ω (as opposed to 33 ohms, which would be written as 33E). Indian-manufactured variants are widely utilized in local power amplifier outputs and audio board power stages.

Technical Specifications

• Resistance Value:33 Ω (0.33 Ohms / 330 Milliohms)
• Power Rating:5 Watts
• Tolerance:±5% (J grade)
• Body Material:Ceramic Cement (Flame-retardant and high heat dissipation)
• Construction Type:Wirewound (Through-hole axial leads)
• Approximate Dimensions:22mm x 9mm x 5mm to 10mm (varies slightly by Indian maker like Techno, Bhawani, or Generic OEM)

Common Applications

• Audio Amplifiers:Used as emitter resistors or output-stage ballast resistors in transistor amplifier boards (such as NX or MT audio power modules).
• Power Supplies:Acts as a current-sensing or low-ohm protection/fusible resistor.
• Motor Controls & Inverters:Handles high peak surge currents safely due to its heavy wirewound core.
