The IRFP4242 is a 300V single N-channel power MOSFET packaged in a TO-247AC case. It handles a continuous drain current of 46A and features a maximum on-state resistance of 0.059 ohms, built for high-voltage and rugged audio or switching applications.

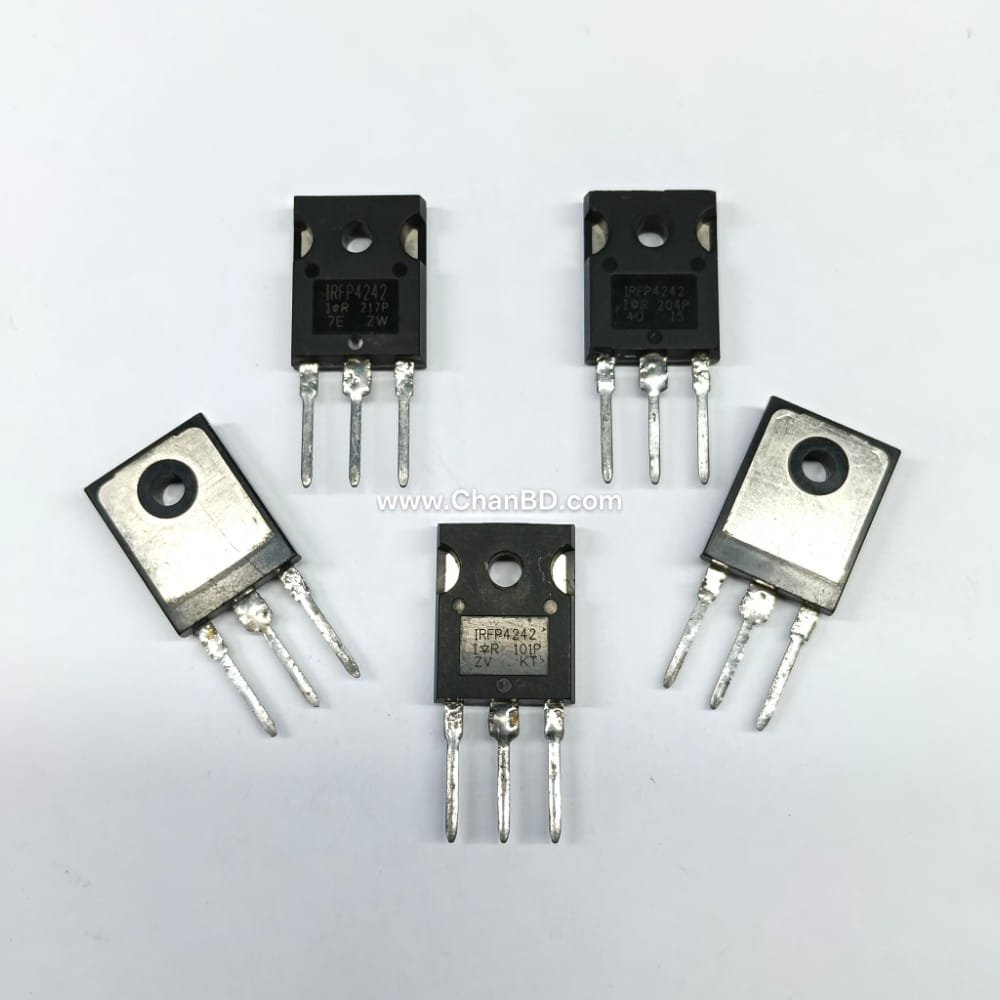

IRFP4242 / IRF4242 (IR) Mosfet Transistor (SH) TO-247 Code: 45496268

Name: IRFP4242 / IRF4242 (IR) Mosfet Transistor (SH) TO-247 Code: 45496268
Brand: C sound
SKU: 19965
Availability: InStock

C sound CHAN ST Semiconductor

Original price was: 450.00৳ .Current price is: 400.00৳ .

Categories: ACCESSORIES, MOSFET, TRANSISTOR

Description
Reviews (0)

The IRFP4242 is a 300V single N-channel power MOSFET packaged in a TO-247AC case. It handles a continuous drain current of 46A and features a maximum on-state resistance of 0.059 ohms, built for high-voltage and rugged audio or switching applications.

Key Electrical Specifications

Drain-Source Voltage : 300 V
Continuous Drain Current : 46 A
Drain-Source On-Resistance :059 Ω
Gate-Source Voltage : ± 30V to ± 39V max
Total Gate Charge : 165 nC
Max Power Dissipation : 430 W

Physical & Design Characteristics

Package Type: TO-247AC (3-pin through-hole mounting)
Channel Type: N-Channel
Technology: Silicon (Si) planar / Strong IRFET™ rugged structure
Common Uses: High-power audio amplifiers, power supplies, and DC-DC converters
