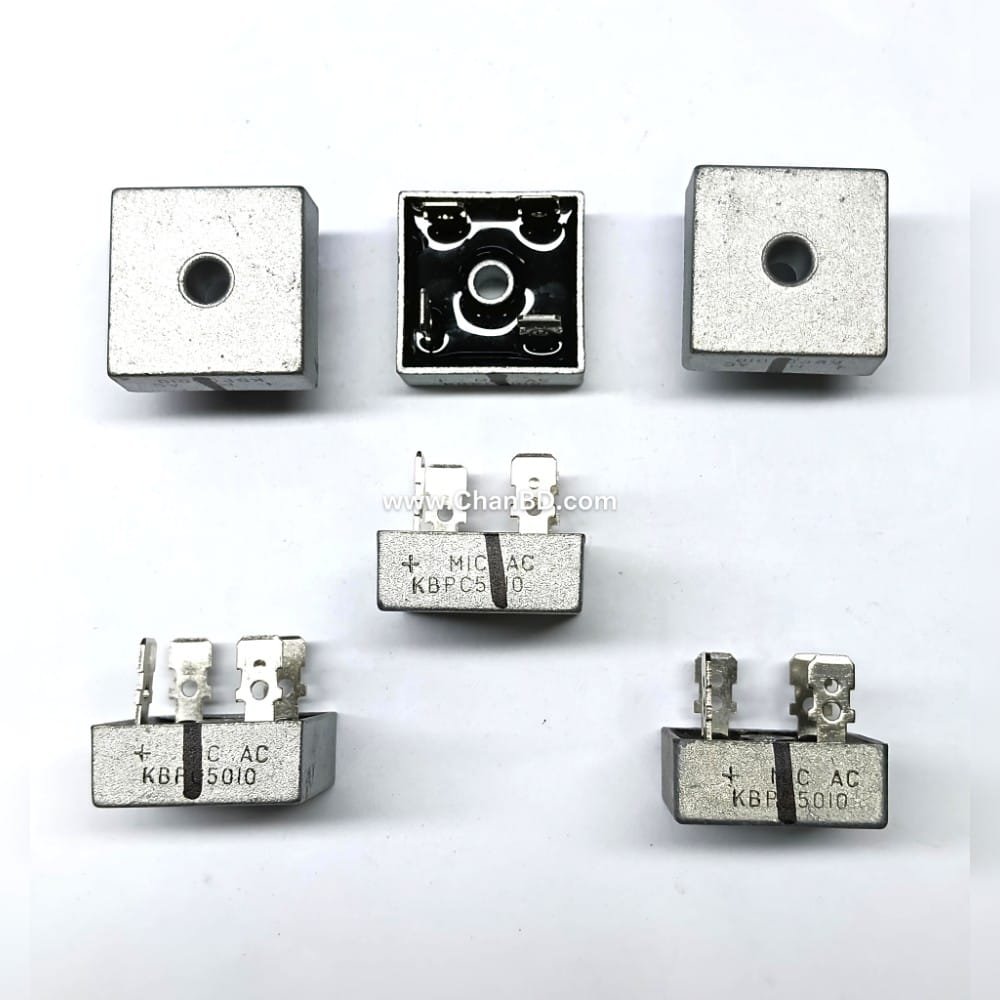

KBPC5010 Bridge Diod (4-Leg Steel body) Code: 08901751

The KBPC5010 is a heavy-duty single-phase bridge rectifier. It safely converts AC (Alternating Current) to DC (Direct Current). It handles up to 50A of continuous current and 1000V. It uses four internal diodes to create a full-wave rectifier circuit. This lets you use both halves of an AC wave.

Key Specs

• Max Forward Current :50A
• Max Reverse Voltage :1000V
• Forward Voltage Drop :1V (per diode)
• Operating Temperature:-40°C to +150°C

Pinout

The KBPC5010 has 4 metal terminals or wire leads:

1. AC (~):Two pins for the AC voltage input.
2. Positive (+):DC positive output.
3. Negative (-):DC negative output.

How it Works

Think of a bridge rectifier like a system of one-way water pipes. It forces AC current to flow in just one direction. One pair of diodes pushes the current through on the positive cycle. Another pair pushes it through on the negative cycle. This creates a steady stream of DC power.

Usage & Cooling

Because it handles high power, it gets very hot. You must bolt the metal case to a heat sink using thermal paste. This keeps the part from melting or breaking.
