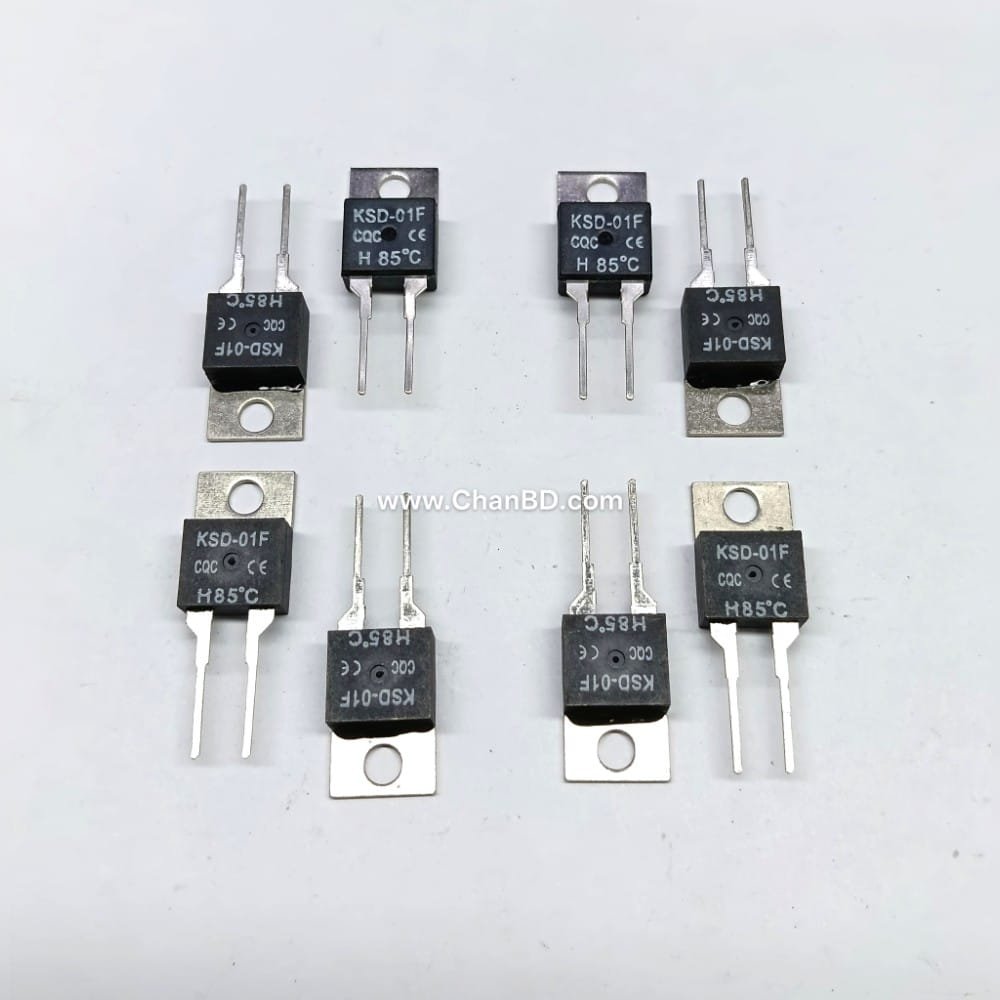

KSD-01F H85C TO-220 (2leg) Code: 10638711

The KSD-01F H85C is a highly compact, bimetallic temperature-controlled switch designed for over-temperature protection and thermal regulation on crowded circuit boards. It features a TO-220 transistor-style casing, an 85°C trip point, and a Normally Open (NO) circuit logic.

Key Specifications

• Action Temperature:85 °C ±5 °C tolerance
• Action Type:Normally Open (H), meaning the circuit is disconnected at room temperature and closes when it hits 85 °C
• Contact Rating:250V AC at 1.5A or 24V DC at 3A
• Contact Resistance:≤ 50 mΩ
• Insulation Resistance:≥ 100 MΩ (at 500V DC)
• Dielectric Strength:1500V AC for 60Hz
• Operating Environment:-55 °C to +150 °C

How It Works

Inside the TO-220 package is a bimetallic strip that reacts to heat. As the surrounding environment or mounted heatsink reaches 85 °C, the strip warps and snaps the contacts shut, completing the circuit to trigger an alarm, activate a cooling fan, or cut power. Once the temperature drops a few degrees below 85 °C, the strip resets and the circuit reopens.

Typical Applications

• Over-temperature protectionin desktop computers, projectors, and power supplies
• Thermal regulationin automotive battery management systems and engine control units
• Safety cut-offsin small heating appliances, coffee makers, and hair dryers
