The KW11-2 is a compact snap-action micro/limit switch typically rated at 5A 125V/250VAC (though some variants reach 10A). It features a momentary hinge lever (approx. 16–17 mm long) and is available in 2-pin (SPST - NO or NC) or 3-pin (SPDT - COM, NO, NC) pin configurations for precise mechanical limit and safety detection.

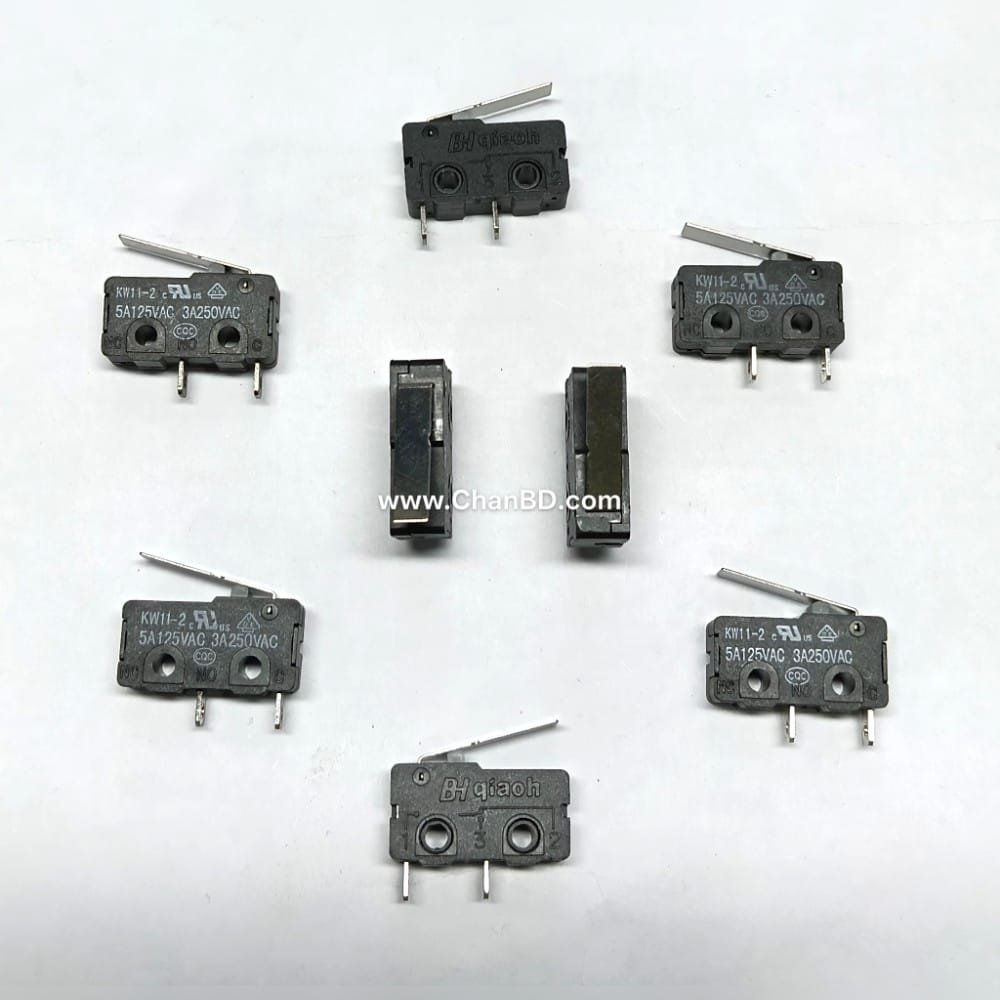

Micro Limit switch (KW11-2) With Flat lever Code: 37012625

Name: Micro Limit switch (KW11-2) With Flat lever Code: 37012625
Brand: C sound
SKU: 19940
Availability: InStock

C sound CHAN

Original price was: 50.00৳ .Current price is: 40.00৳ .

Categories: ACCESSORIES, SWITCH

Description
Reviews (0)

The KW11-2 is a compact snap-action micro/limit switch typically rated at 5A 125V/250VAC (though some variants reach 10A). It features a momentary hinge lever (approx. 16–17 mm long) and is available in 2-pin (SPST – NO or NC) or 3-pin (SPDT – COM, NO, NC) pin configurations for precise mechanical limit and safety detection.

Key Specifications

Voltage Rating:125V AC / 250V AC
Current Rating:5A (general purpose)
Contact Configuration:SPST (Normally Open / Normally Closed) or SPDT
Approximate Dimensions:~19.7 x 6.2 x 10.7 mm
Actuator:Straight hinge lever (pin/soldering or quick-connect terminals)

Common Applications

Home Appliances:Microwave doors, washing machine lids, and safety interlocks.
Electronics & DIY:3D printer endstops, CNC position limits, and robotics.
Automotive & Hardware:Small limit detection and custom trigger mechanisms.
