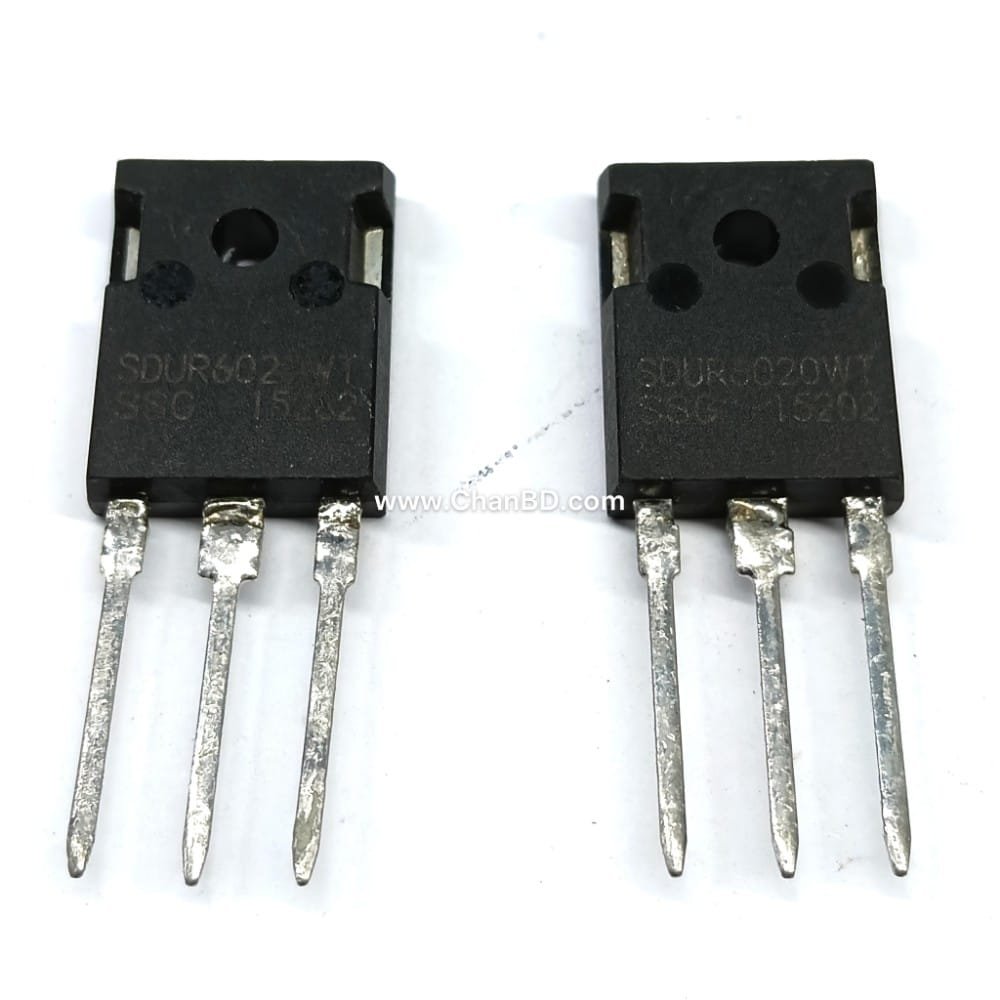

MUR6020NCA / SDUR6020WT Diod Transistor TO-3P / TO-247 (SH) Code: 04420993

The MUR6020NCA is not technically a transistor, but rather an Ultrafast Recovery Diode. Often confused with transistors due to its three-pin TO-3PN or TO-247 package, it consists of two fast-recovery diodes connected in a common cathode configuration, designed for high-power switching applications.

Key Specifications

• Type:Fast Recovery Diode (Dual Diode, Common Cathode)
• Maximum Repetitive Reverse Voltage :200V
• Average Forward Current :60A total (30A per diode)
• Package Type:TO-3PN or TO-247
• Forward Voltage Drop :Typically 1.0V at 30A
• Reverse Recovery Time :Ultrafast (typically ≤ 35 ns)
• Operating Temperature:Up to 150°C

Common Applications

Because of its high current and voltage capacity combined with a very fast recovery time, this component is heavily utilized in power electronics:

• Switching Power Supplies (SMPS)
• Inverter Power Supplies
• Energy Steering and Clamping Circuits
• Welding Equipment
