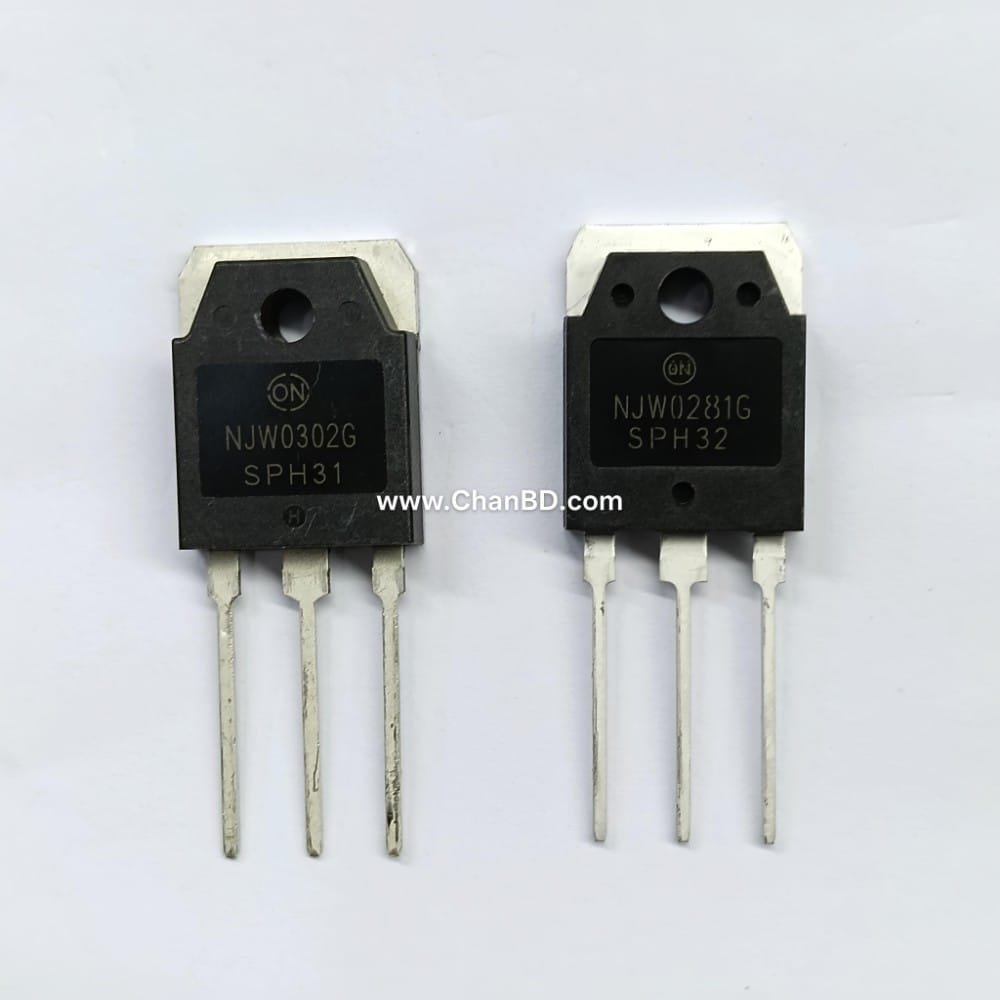

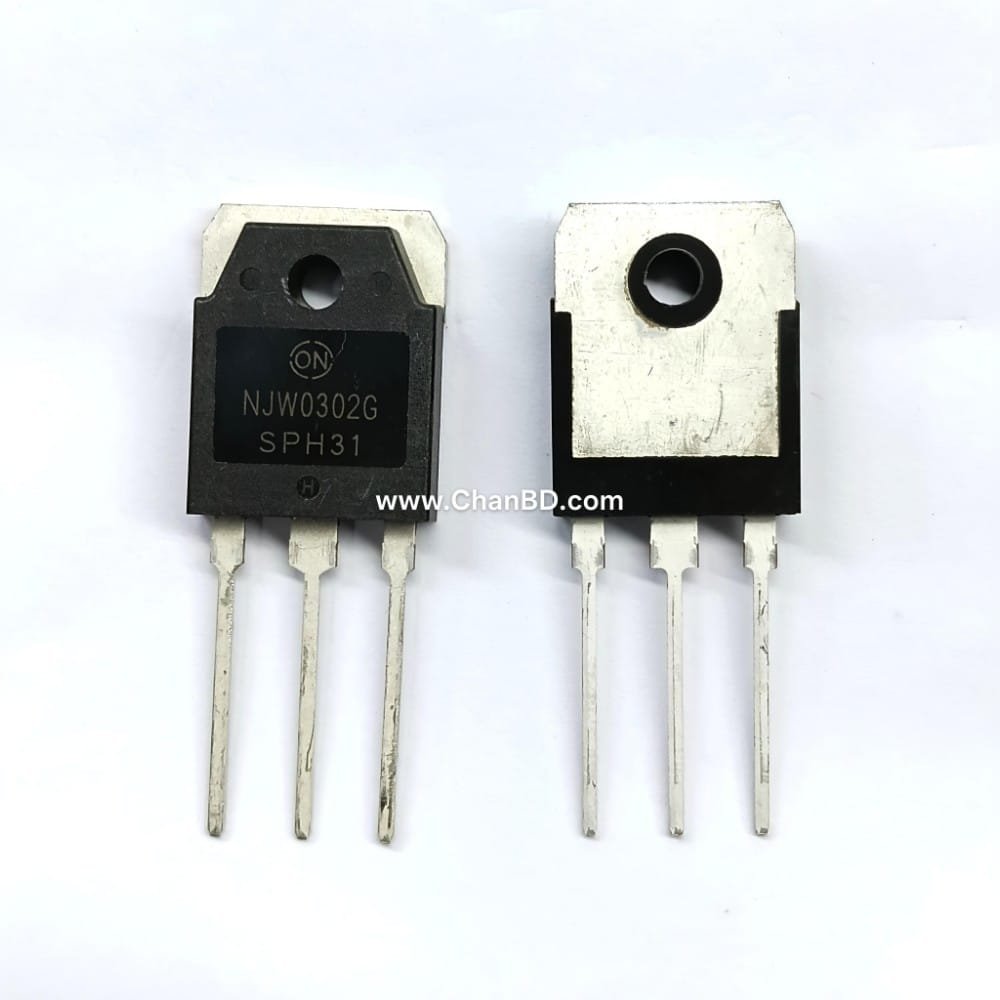

(NJW0281G/NJW0302G) (ON) Transistor TO-3P NEW Code: 38699095

The NJW0281G (NPN) and NJW0302G (PNP) form a complementary high-power bipolar junction transistor (BJT) pair manufactured by onsemi. Encapsulated in a rugged TO-3P package, they are engineered specifically for high-fidelity (hi-fi) audio amplifier output stages, linear applications, and demanding home or professional audio systems.

Core Specifications

• Polarity:Complementary Pair — NJW0281G (NPN) and NJW0302G (PNP)
• Package Type:TO-3P (3-lead plastic package)
• Collector-Emitter Voltage :250 V (min)
• Collector Current :15 A continuous (peaks up to 30 A)
• Total Power Dissipation :150 W
• Transition Frequency :30 MHz (typical high frequency response)
• Gain Matching:NPN/PNP gain  matched within 10% from 50 mA to 3 A

Key Features & Benefits

• Superior Gain Linearity:Minimizes audio distortion and accurately reproduces complex waveforms.
• Exceptional Safe Operating Area (SOA):Built to handle high dynamic ranges and heavy thermal loads without failure.
• Pb-Free & RoHS Compliant:Environmentally friendly manufacturing standard.

Primary Applications

• High-end home stereo amplifiers and receivers
• Professional audio power amplifiers
• Theater, stadium sound, and public address (PA) systems
• General linear high-voltage/high-current configurations
