The P60NF06 (often referred to as STP60NF06 Datasheet on STMicroelectronics) is a high-performance N-Channel power MOSFET featuring a drain-source voltage of 60V, a continuous drain current of 60A, and low on-resistance of 0.016Ω.

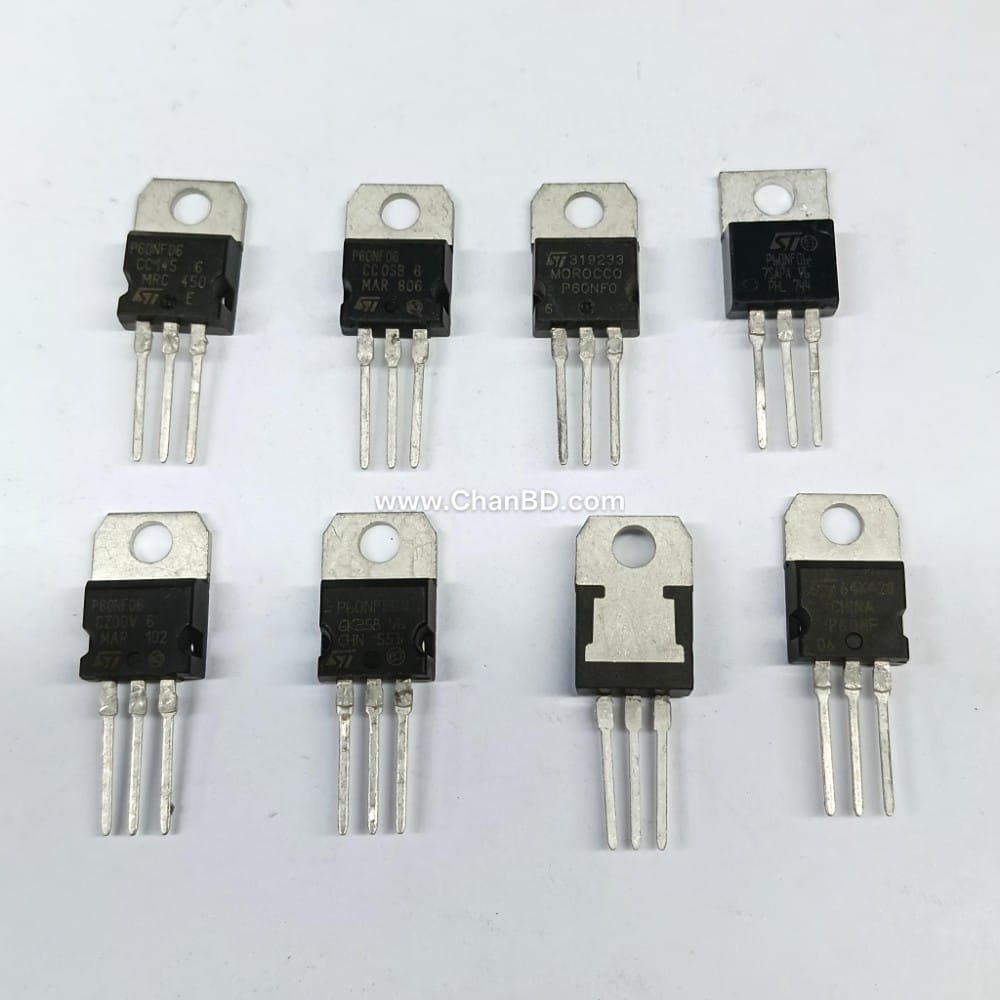

P60NF06 / STP60NF06 (ST) Mosfet Transistor TO-220 Code: 93540001

Name: P60NF06 / STP60NF06 (ST) Mosfet Transistor TO-220 Code: 93540001
Brand: C sound
SKU: 19847
Availability: InStock

C sound CHAN ST Semiconductor

Original price was: 70.00৳ .Current price is: 59.00৳ .

Categories: AC-DC INVERTER ACCESSORIES, ACCESSORIES, TRANSISTOR

Description
Reviews (0)

The P60NF06 (often referred to as STP60NF06 Datasheet on STMicroelectronics) is a high-performance N-Channel power MOSFET featuring a drain-source voltage of 60V, a continuous drain current of 60A, and low on-resistance of 0.016Ω.

Key Technical Specifications

Package Type:TO-220 (through-hole mounting)
Transistor Polarity:N-Channel
Drain-Source Voltage :60V
Gate-Source Voltage :±20V
Continuous Drain Current :60A
Pulsed Drain Current :240A
Total Power Dissipation :110W
Static Drain-Source On-Resistance :016Ω max
Operating Temperature Range :-55°C to +175°C

Pinout Configuration

Pin 1 (Gate – G):Controls the switching state of the MOSFET.
Pin 2 (Drain – D):Connected to the load and high voltage input.
Pin 3 (Source – S):Connected to ground or the negative rail.

Common Applications

DC-DC Converters:High-efficiency isolated power supplies for telecom and computing.
Motor Control:Speed and driver controllers for DC motors.
Power Inverters & UPS:Uninterruptible power supplies and solar power setups.
General High-Speed Switching:Load switches and high-current driver circuits.
