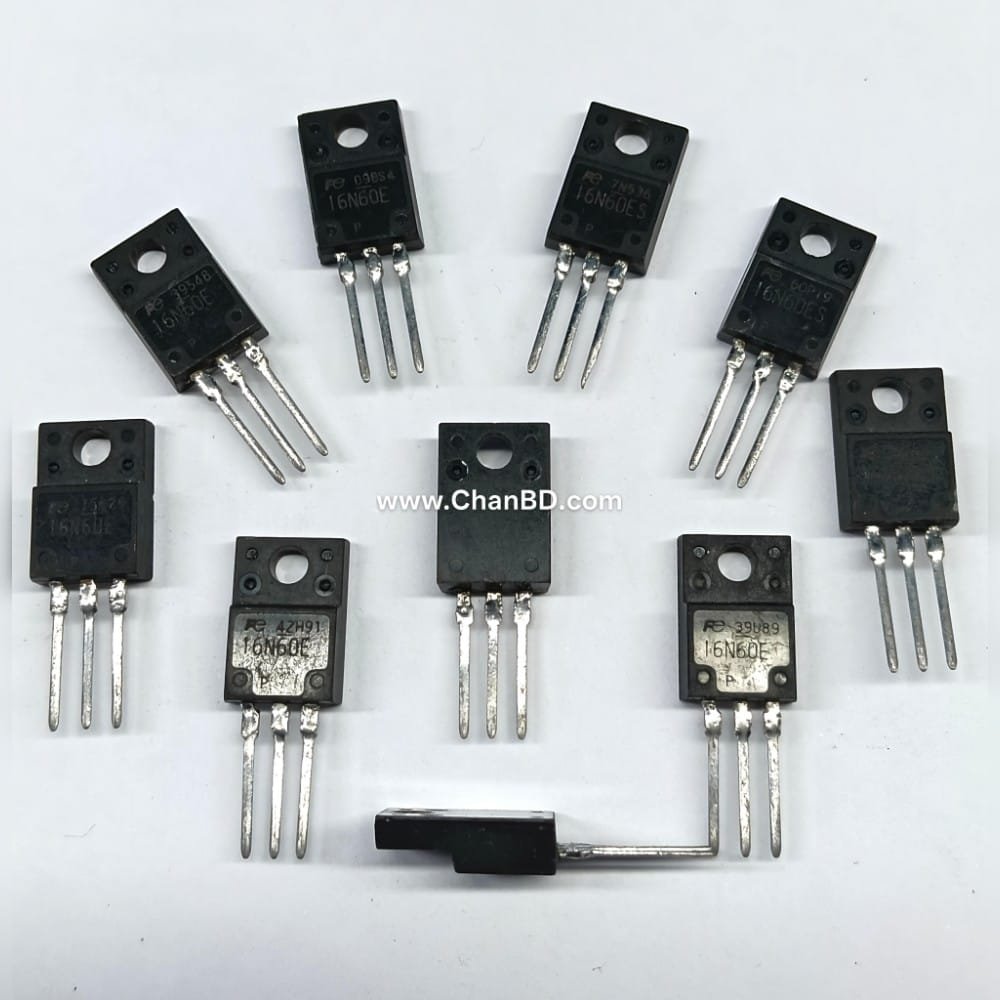

16N60E Transistor (Fe) (SH) TO-220F Code: 19558827

The 16N60E is an N-channel power MOSFET designed for high-voltage and high-current switching. It is primarily used in power supplies and motor controls. Key specifications include a 600V drain-source voltage and a 16A continuous drain current, with typical variants housed in a TO-220 package.

Key Specifications

• Transistor Type:N-Channel Power MOSFET
• Max Drain-Source Voltage ):600 V
• Max Continuous Drain Current :16 A
• Max Gate-Source Voltage :±30 V
• On-State Resistance :Typically between 0.17 Ω and 0.47 Ω depending on the specific manufacturer variant
• Total Gate Charge:~55 nC

Common Applications

• Switched-Mode Power Supplies (SMPS)
• Motor controls and drives
• DC-DC converters
• Industrial power systems

Popular Manufacturer Variants

Several manufacturers produce similar versions of this component (e.g., Fuji Electric, Fairchild, Nell Power). You can review the exact specifications by checking the Fuji Electric FMC16N60ES Datasheet or the Fairchild FCP16N60 Datasheet.
