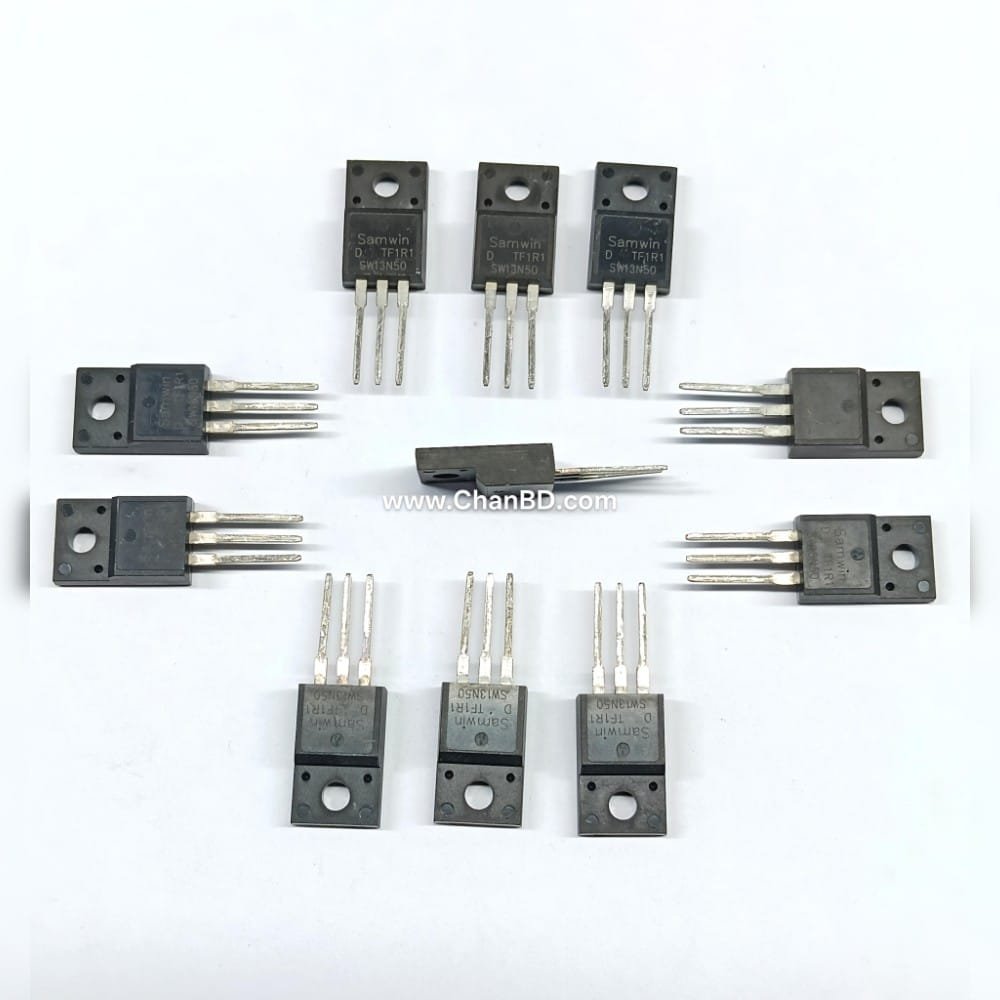

SW13N50 (Samwin) / FQPF13N50C / 13N50 Mosfet Transistor TO-220F Code: 36549915

The 13N50 is a high-voltage, N-channel enhancement-mode power MOSFET commonly used in switched-mode power supplies (SMPS), LED drivers, and power factor correction (PFC) circuits. It handles a maximum drain-source voltage of 500V and continuous drain current of 13A, featuring an on-resistance around 0.48 Ω.

Review complete electrical and thermal characteristics from the AllTransistors 13N50 Overview or reference the ON Semiconductor FQP13N50C Datasheet for detailed specifications.

Key Technical Specifications

• Drain-Source Voltage :500V
• Continuous Drain Current :13A (varies slightly by manufacturer, e.g., 12.5A for some variants)
• On-Resistance :48 Ω
• Gate-Source Voltage :± 30V
• Total Gate Charge :43nC (typical)
• Power Dissipation :Up to 168W (depending on the package)
• Operating Junction Temperature Range:-55°C to 150°C

Package Types

The 13N50 is universally housed in a standard TO-220 (with a metal tab for a heatsink) or TO-220F (fully isolated package). These packages allow for excellent heat dissipation when mounted correctly with a heatsink and thermal paste.

Common Applications

• Switched-Mode Power Supplies (SMPS)
• Active Power Factor Correction (PFC)
• Electronic ballasts
• DC-AC inverters and LED drivers
• General-purpose motor controls

Popular Equivalents and Replacements

If you are repairing a circuit and cannot find the exact 13N50, suitable replacements with similar or upgraded specifications include:

• FQP13N50C/ FQPF13N50C
• IRF13N50
• STP13NK50Z
• SPA11N50C3
