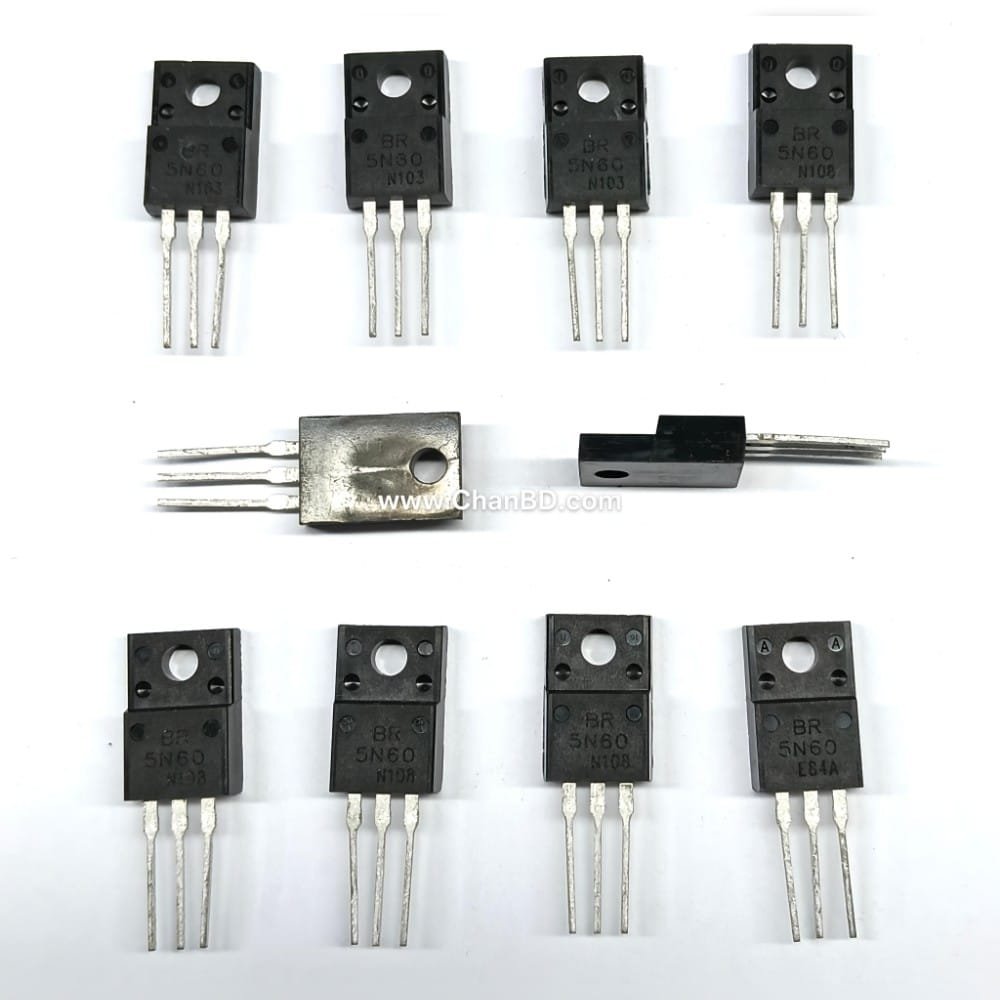

BR5n60 / FQPF5N60 / 5n60 Mosfet Transistor TO-220F Code: 41627513

The 5N60 is an N-channel, enhancement-mode power MOSFET primarily used for high-voltage and high-speed switching applications. It can handle a maximum drain-source voltage of 600V and typically supports continuous drain currents between 2.8A and 5.0A, depending on the specific manufacturer variant.

Key Specifications

• Drain-Source Voltage :Up to 600V
• Continuous Drain Current :8A to 5A
• On-State Resistance :Low resistance, typically between 1.8Ω and 2.5Ω at 10V
• Gate-Source Voltage :± 30V maximum
• Power Dissipation :Up to 48W – 100W
• Operating Temperature:Up to 150°C – 175°C
• Package Type:Commonly found in TO-220 (or TO-220F) packages for easy heat sinking

Common Applications

Due to its low gate charge and fast switching speeds, the 5N60 is highly efficient for:

• Switched-Mode Power Supplies (SMPS)
• DC-to-DC converters
• High-frequency topologies in electronic ballasts
• Pulse Width Modulation (PWM) motor controls
• Bridge circuits
