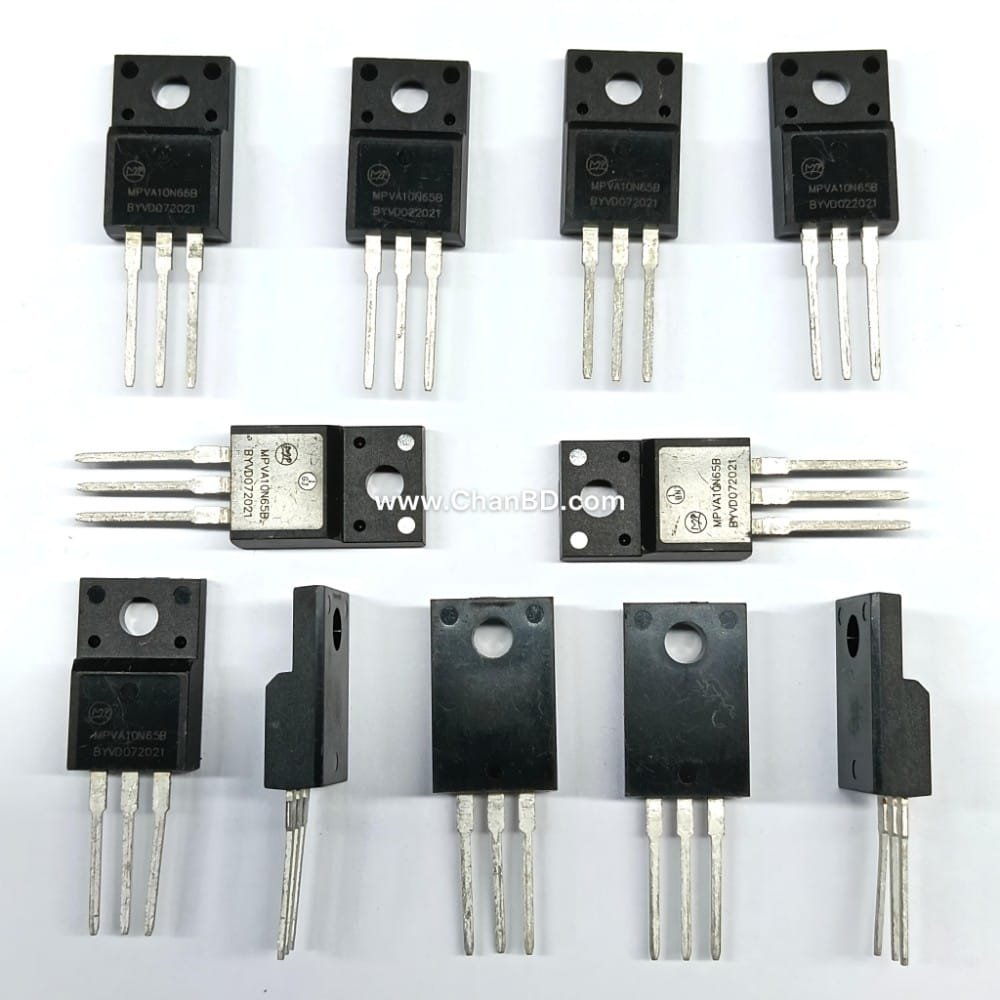

MPVA10N65B / FQP10N65 / MBS10N65F / 10N65 Mosfet Transistor TO-220F Code: 10769560

The FQP10N65 (often designated as FQP10N65C) is a high-voltage, 10-ampere N-Channel power MOSFET typically housed in a TO-220 package. It is primarily used for efficient power conversion, high-speed switching applications, and motor controls.

Core Specifications

• Drain-Source Voltage :650 V
• Continuous Drain Current :10 A
• On-State Resistance :Typically 0.85 Ω to 1.05 Ω
• Gate-Source Voltage: ± 30V max
• Power Dissipation :Up to 130 W
• Operating Temperature:-55°C to +150°C

Key Features

• Low Gate Charge:Typical values around 44 nC
• Fast Switching:Tailored for rapid transition between states
• Rugged Avalanche:100% avalanche tested to handle voltage spikes

Common Applications

• Switch-Mode Power Supplies (SMPS)
• DC to DC Converters
• Bridge Circuits
• Pulse Width Modulation (PWM) Motor Controls
