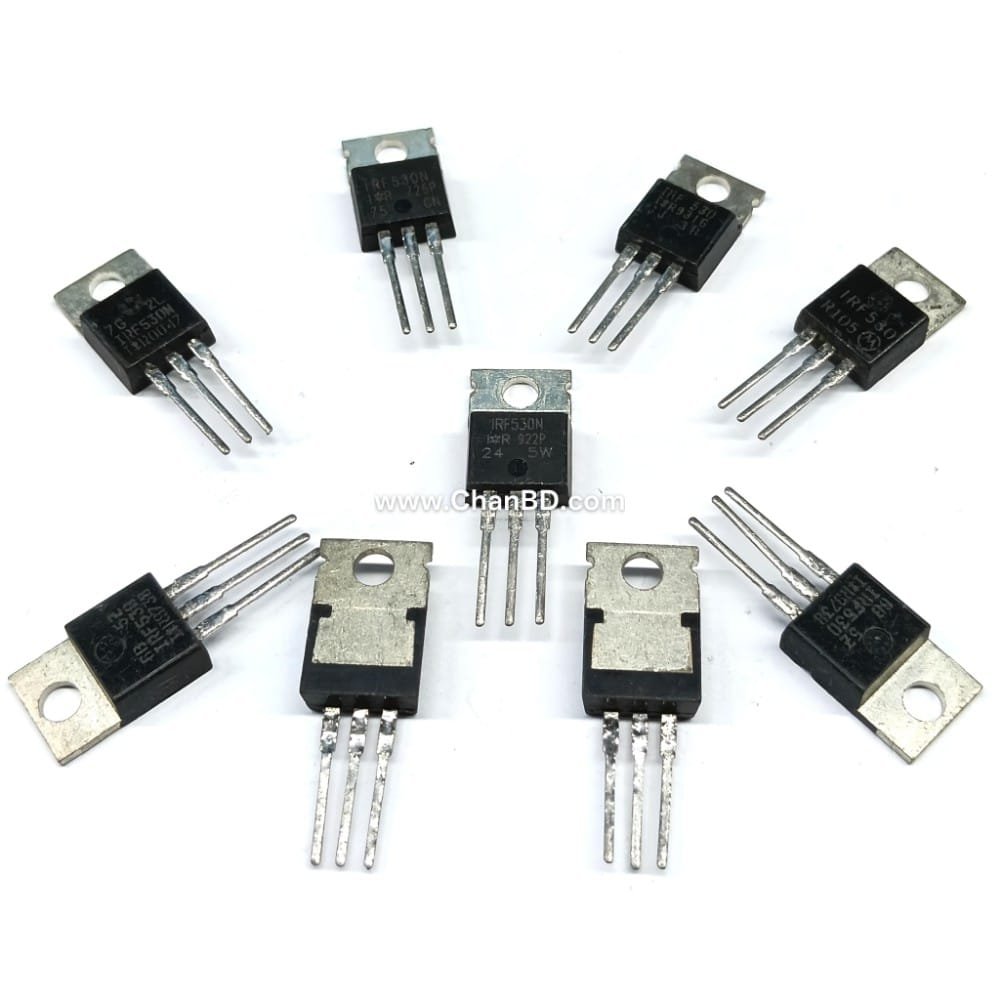

IRF530N MOSFET Transistor TO-220 (SH) Code: 84900501

The IRF530N is a widely used N-channel power MOSFET designed for high-speed switching and power management applications. To explore its technical documentation, you can view or download the full specification sheet directly on the Infineon IRF530N Datasheet.

Key technical specifications for the IRF530N include:

• Package Type:TO-220 (Through-Hole)
• Drain-Source Voltage :Up to 100V
• Continuous Drain Current :Up to 17A
• Drain-Source On-Resistance :09 Ω (90 mΩ)
• Gate-Source Voltage :± 20V
• Power Dissipation :79W
• Operating Temperature:-55 °C to +175 °C

Pinout Configuration

The TO-220 package consists of three pins, oriented from left to right when viewing the front of the device:

1. Gate:Controls the MOSFET state (ON/OFF).
2. Drain:The main current path (connected to the load).
3. Source:The return path for the current.

Common Applications

Due to its low thermal resistance and low on-resistance, the IRF530N is frequently utilized in:

• DC motor drives
• Switching power supplies
• Relay and solenoid drivers
• High-power LED dimmers
