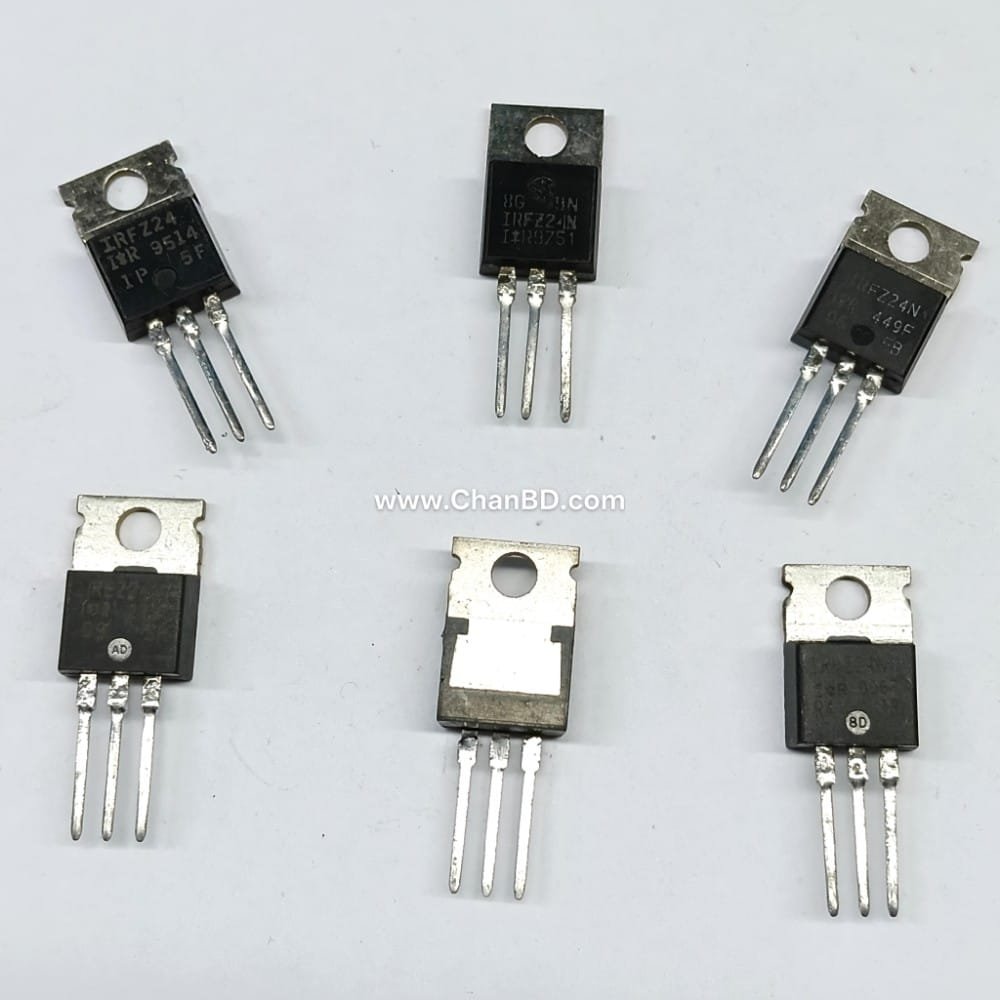

IRFZ24N MOSFET Transistor (Red) TO-220 (SH) Code: 30107994

The IRFZ24N is a popular, high-speed N-Channel Power MOSFET housed in a TO-220 package, rated for up to 55 V and 17 A. It features an ultra-low On-State Resistance of 0.07 Ω, 45 W power dissipation, and can handle pulsed drain currents up to 68 A.

Key Specifications

• Transistor Type:N-Channel
• Drain to Source Voltage :55 V (Max)
• Continuous Drain Current :17 A
• Pulsed Drain Current :68 A
• Gate to Source Voltage :±20 V (Max)
• Drain-Source Resistance :07 Ω (Max)
• Total Power Dissipation :45 W
• Operating & Storage Temperature:-55°C to +150°C

Pin Configuration (TO-220 Package)

Looking at the front of the component (with the metal tab at the top and the printed text facing you), the pinout from left to right is:

1. Gate (G):Controls the MOSFET state (ON/OFF)
2. Drain (D):The pin where the load voltage is applied
3. Source (S):The pin connected to the ground

Typical Applications

• High-speed switching applications
• DC-DC converters and switched-mode power supplies (SMPS)
• Motor drivers and speed controllers
• General-purpose power switching
