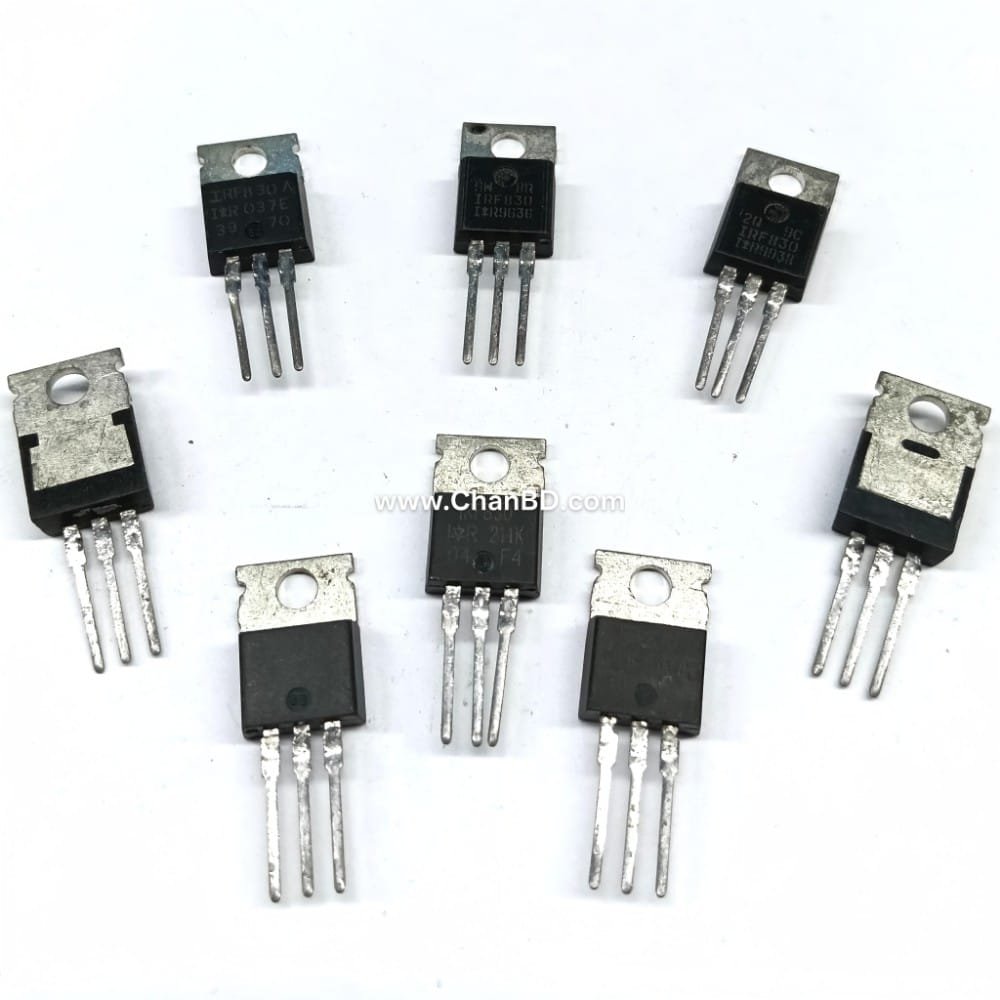

IRF830 MOSFET Transistor TO-220 (SH) Code: 56300894

The IRF830 is a popular, high-voltage, N-channel power MOSFET widely used in switching voltage regulators, DC-DC converters, and motor control circuits. It features a maximum drain-to-source voltage of 500 V, a continuous drain current of 4.5 A, and an on-state resistance of 1.5 Ω.

Pinout Configuration

The IRF830 comes in a standard 3-pin TO-220 package, making it easy to mount onto a heatsink for improved heat dissipation.

1. Gate (Pin 1):Controls the biasing of the MOSFET (Threshold voltage is typically 4 V to 10 V).
2. Drain (Pin 2):The input terminal where the current flows in.
3. Source (Pin 3):The output terminal where the current flows out.

Key Technical Specifications

• Transistor Type:N-Channel MOSFET
• Drain-Source Voltage :Up to 500 V
• Continuous Drain Current :5 A
• Pulsed Drain Current :18 A
• Drain-Source On-Resistance :5 Ω
• Gate-Source Voltage :± 20 V
• Maximum Power Dissipation :74 W to 75 W
• Operating Junction Temperature:-55 °C to +150 °C

Common Applications

• Switched-mode power supplies (SMPS)
• DC to DC converters
• TV and computer monitor power supplies
• General-purpose switching applications

Replacements and Equivalents

If the IRF830 is unavailable, you can often use the IRF840 (which handles a higher 8A current) or alternatives like the 8N50 or KF12N50.
