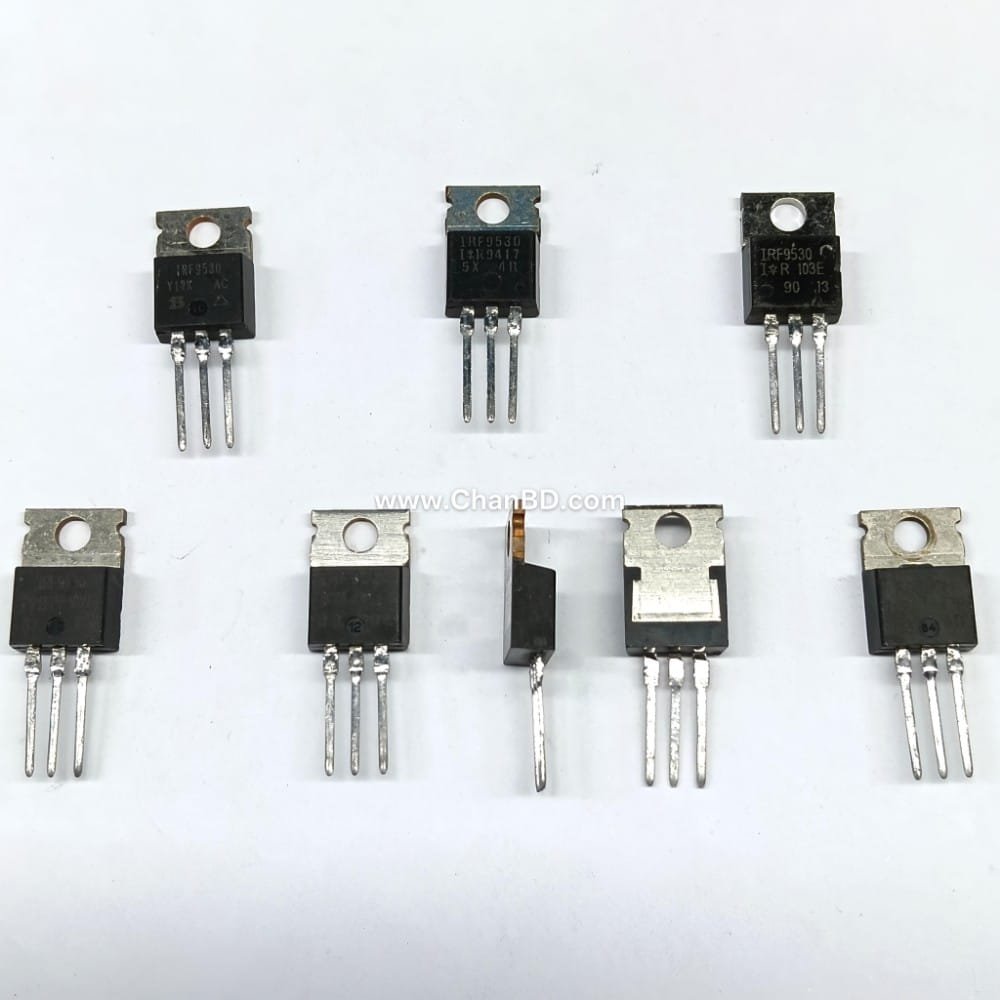

IRF9530 / F9530N / SFP9530 (F) Mosfet Transistor (SH) TO-220 (Class-A) (Red) Code: 25682730

The IRF9530N is a popular P-Channel HEXFET Power MOSFET commonly used in industrial, commercial, and DIY electronic circuits for switching and amplification.

Key Specifications

• Transistor Type:P-Channel MOSFET
• Drain-Source Voltage :-100V
• Continuous Drain Current :-14A
• On-State Resistance :20 Ω max10V
• Maximum Power Dissipation :75W to 79W
• Operating Temperature Range:-55°C to +175°C
• Package Type:TO-220AB

Pinout Configuration

The TO-220AB package features three standard pins:

1. Pin 1 (Gate):Controls the MOSFET state.
2. Pin 2 (Drain):The output terminal.
3. Pin 3 (Source):The input terminal.

Applications

Because of its fast switching speeds and rugged design, it is widely utilized in:

• DC-DC converters
• Motor control and inverter boards
• Power management and load switching
• Audio power amplifiers

Equivalents and Replacements

If the IRF9530N is unavailable, it can typically be substituted with the IRF9540, 2SJ380, IRFIP9140, or IRF9530 (standard version).
