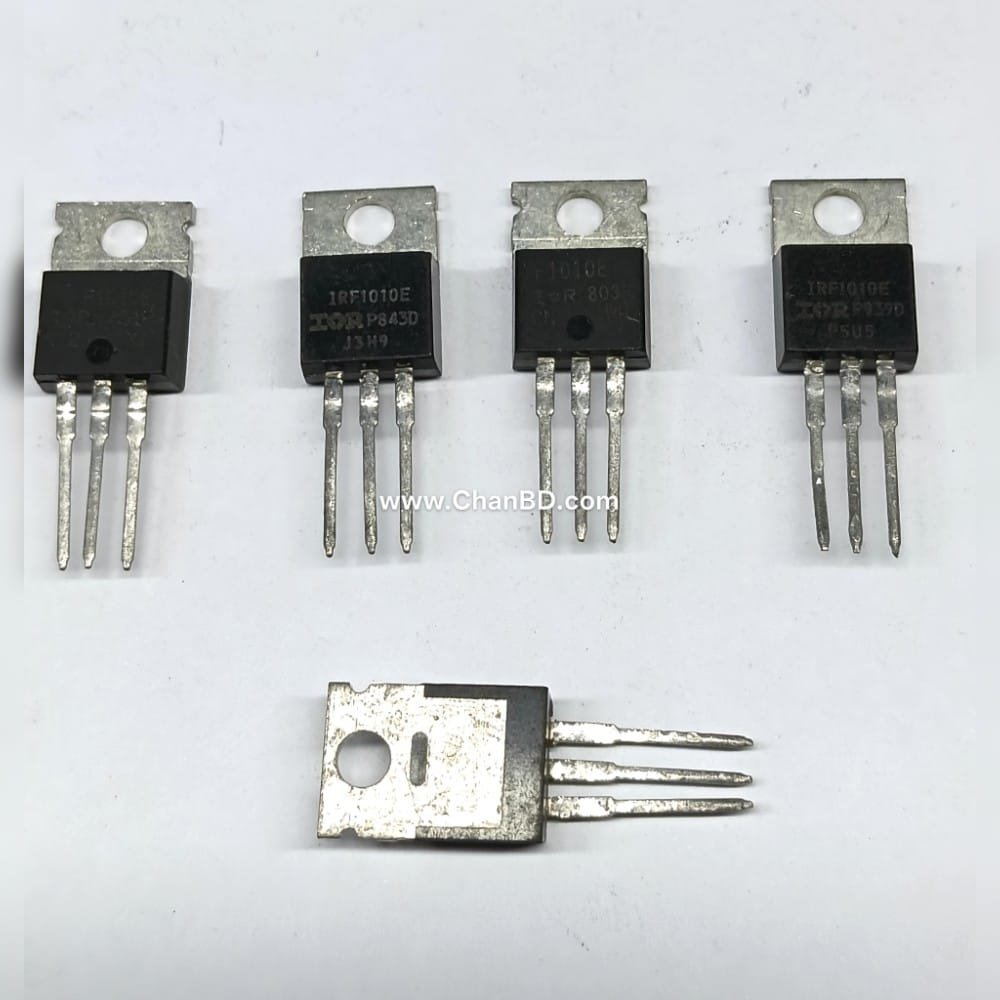

IRF1010E/F1010E/F1010N Mosfet Transistor (SH) TO-220 (Class-B) (White) Code: 03680561

The IRF1010E is an N-Channel power MOSFET in a TO-220 package, notable for handling up to 60V and 84A of continuous drain current. It features an ultra-low on-resistance of just 12mR, making it highly efficient for high-current, low-loss switching and motor controls.

• Type:N-Channel
• Drain-Source Voltage :Up to 60V
• Continuous Drain Current :84A (up to 59A
• Pulsed Drain Current :330A
• On-Resistance :12mΩ
• Gate-Source Voltage :± 20V
• Max Power Dissipation:Up to 200W
• Operating Temperature:-55C to +175C

Pinout Configuration

The IRF1010E has three pins:

1. Gate (Pin 1):Controls the state of the MOSFET.
2. Drain (Pin 2):Connected to the load; it is also physically connected to the large metal tab on the back.
3. Source (Pin 3):Connected to the ground or the negative rail of the circuit.

Common Applications

Due to its high current handling and rugged 5th generation HEXFET technology, it is widely used in:

• DC-DC converters
• High-power motor drives/controllers
• Uninterruptible Power Supplies (UPS) and battery management systems
• Automotive electronics
