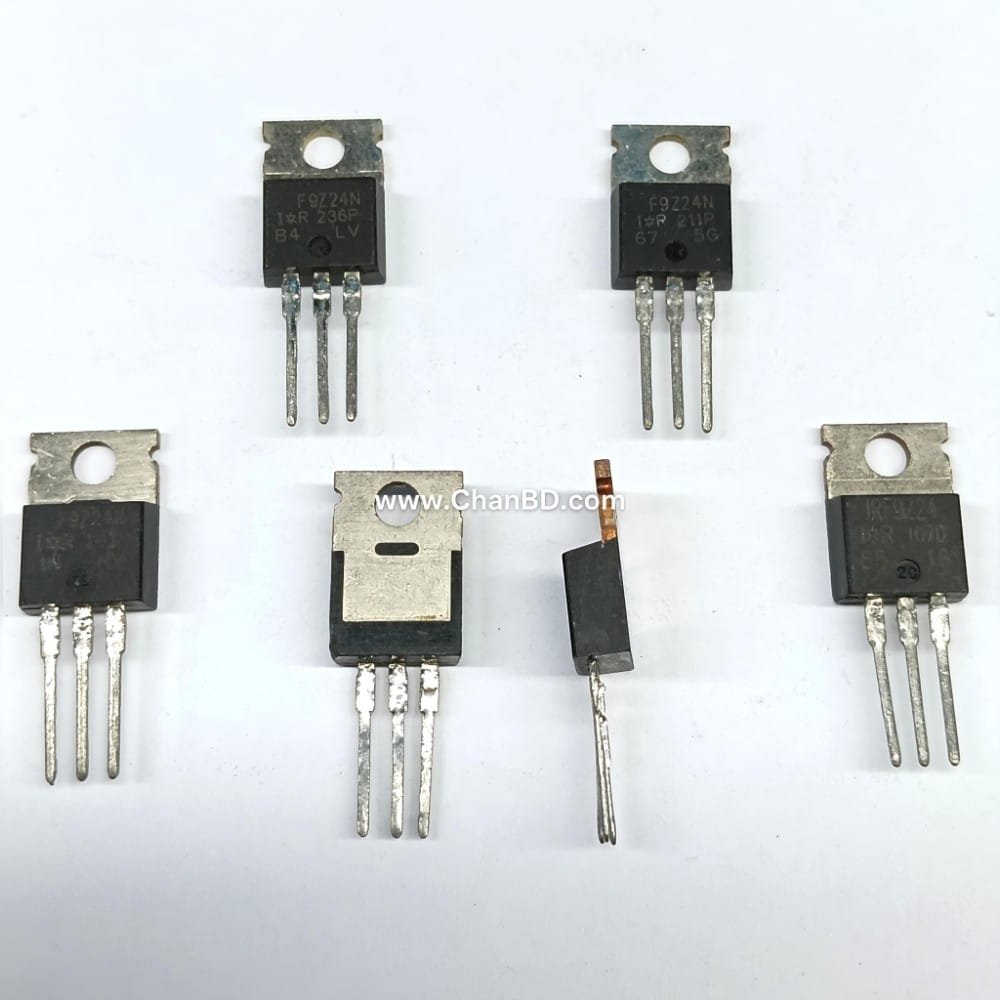

IRF9Z24N /F9Z24N Mosfet Transistor (SH) TO-220 (Class-B) (White) Code: 39153804

The IRF9Z24 is a 60 V P-Channel Power MOSFET primarily used in switching and linear applications. Encased in a TO-220 package, it handles continuous drain currents up to -11 A and features a low on-resistance of 0.28 Ω.

Core Specifications

• Type:P-Channel MOSFET
• Drain-Source Voltage :-60 V
• Continuous Drain Current :-11 A (at 25°C) and -7.7 A (at 100°C)
• Pulsed Drain Current :-44 A
• Gate-Source Voltage :± 20 V
• On-Resistance :28 Ω
• Power Dissipation :60 W
• Operating Temperature Range:-55°C to +175°C

Key Features

• Fast Switching:Designed to provide “the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness”.
• Avalanche Rated:100% tested for inductive switching and avalanche capabilities.
• Standard Package:Features a TO-220AB package, which is “universally preferred for all commercial-industrial applications”.

Equivalent & Alternative Components

If the IRF9Z24 is unavailable for your design, you can often use the IRF9Z24N, IRF5305, or IRF9530 as a direct or close substitute.
