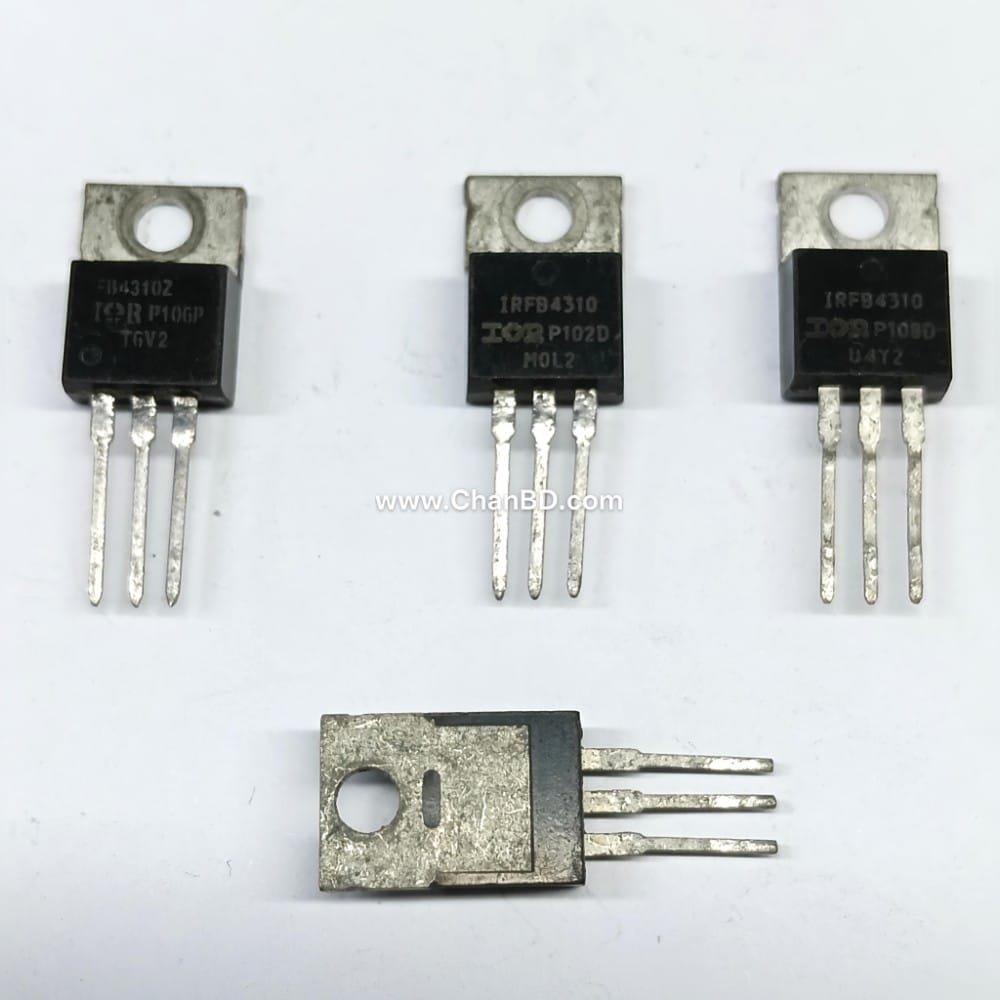

IRFB4310 / IRF4310 Mosfet Transistor (SH) TO-220 (Class-B) (White) Code: 82507067

The IRFB4310 is a rugged, 100V N-channel HEXFET power MOSFET. Featuring ultra-low on-resistance of 5.6 mΩ and high continuous drain current (up to 130A), it is ideal for high-efficiency switching, motor drives, and uninterruptible power supplies (UPS).

Key Specifications

• Drain-Source Voltage :100V
• Continuous Drain Current :130A at 25° C
• On-State Resistance :6 mR / 7.0 mR = 10V
• Gate-to-Source Voltage :± 20V
• Maximum Power Dissipation :300W
• Operating Temperature Range:-55 to 175° C
• Package Type:TO-220AB

Notable Features

• Advanced Process Technology:Engineered with high avalanche ruggedness and dynamic dV/dt rating for superior reliability.
• Low Thermal Resistance:Limits junction-to-case heat build-up to 0.5° C/W.
• Fast Switching:Highly capable in hard-switched and high-frequency applications.

Common Applications

• Uninterruptible Power Supplies (UPS)
• Switch-Mode Power Supplies (SMPS)
• High-power DC-DC converters
• High-current motor controllers
