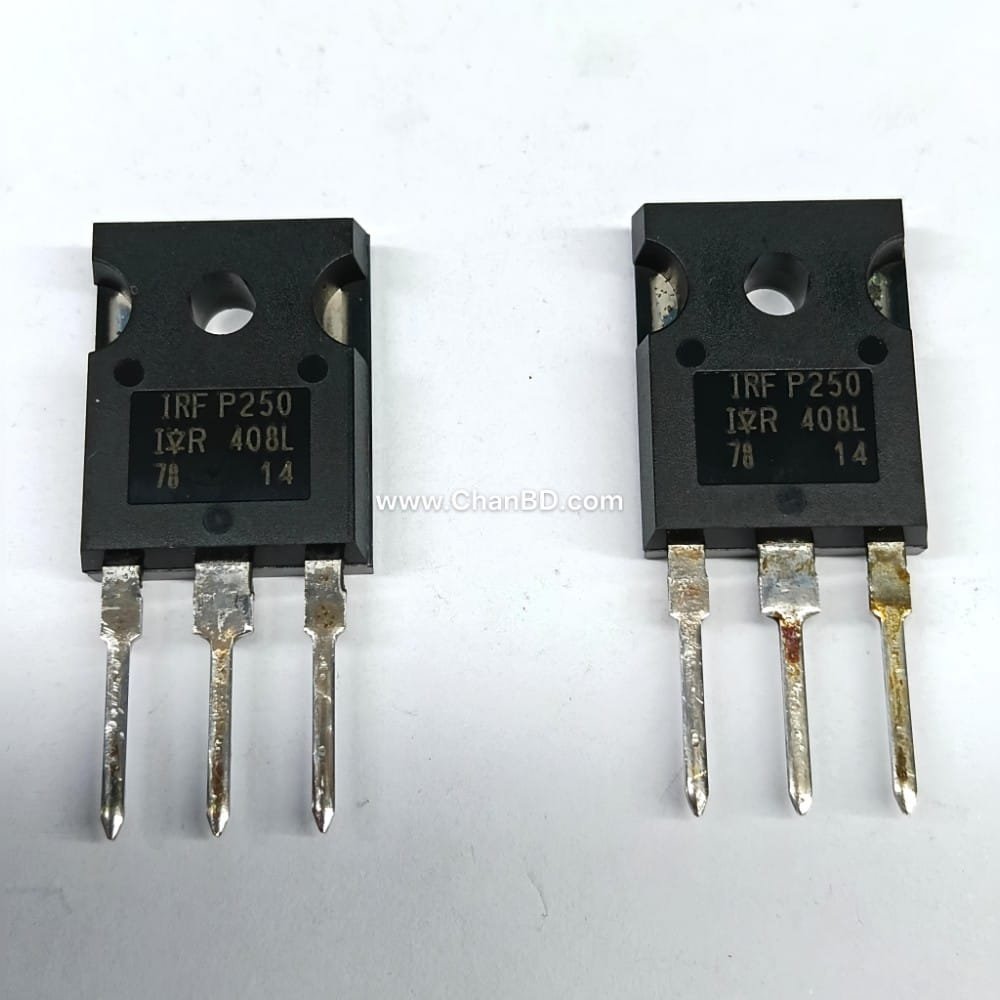

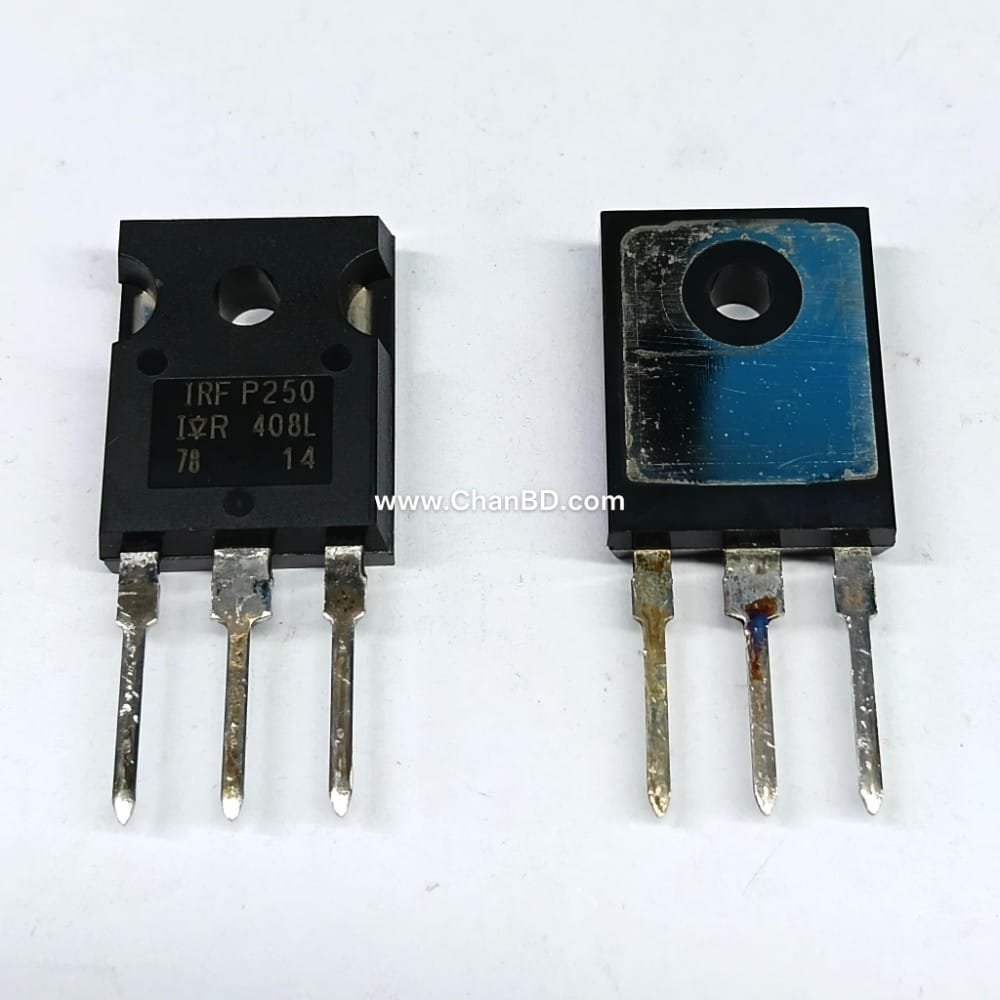

IRFP250 / IRF250 Transistor TO-247 (Original Mexico) Code: 53379108

The IRFP250 Power MOSFET is a 200V, 30A N-channel power transistor packaged in a TO-247 case, featuring a low on-resistance of 0.085 ohms and fast switching speeds. Review the complete IRFP250 Datasheet on Vishay for technical schematics.

Key Electrical Ratings

• Drain-Source Voltage:200 V
• Continuous Drain Current :30 A at 25° C
• Pulsed Drain Current :120 A
• Gate-Source Voltage :± 20 V
• Max Power Dissipation :190 W
• Static Drain-Source On-Resistance :085 Ω

Pin Configuration & Thermal Data

• Pin 1:Gate (control input)
• Pin 2:Drain (output, connected to metal mounting tab)
• Pin 3:Source (common reference)
• Operating Temperature :-55 to +150° C

Common Applications

• High-power inverters
• Switch-mode power supplies
• Motor speed controllers

Uninterruptible power supplies (UPS)
