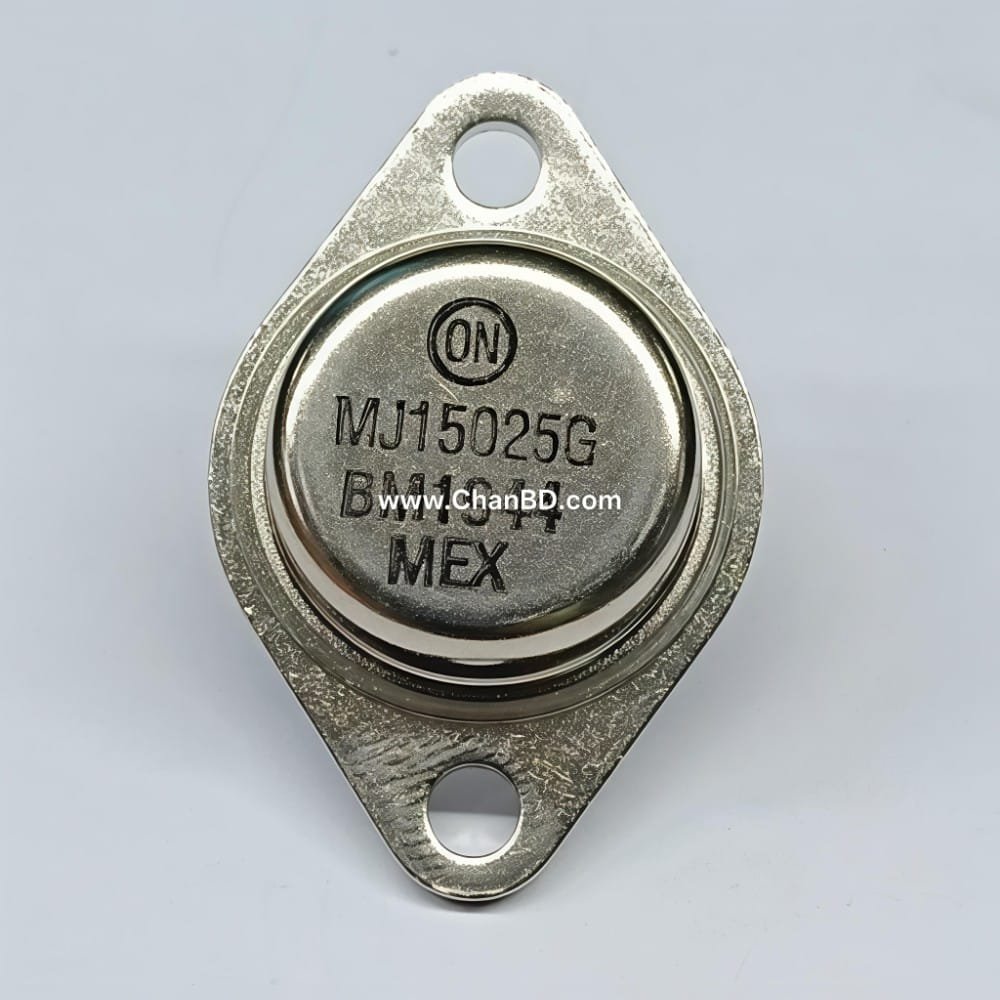

The MJ15025G is a high-power onsemi PNP silicon power transistor packaged in a metal TO-204 (TO-3) case, designed primarily for high-power audio amplifiers and linear applications.

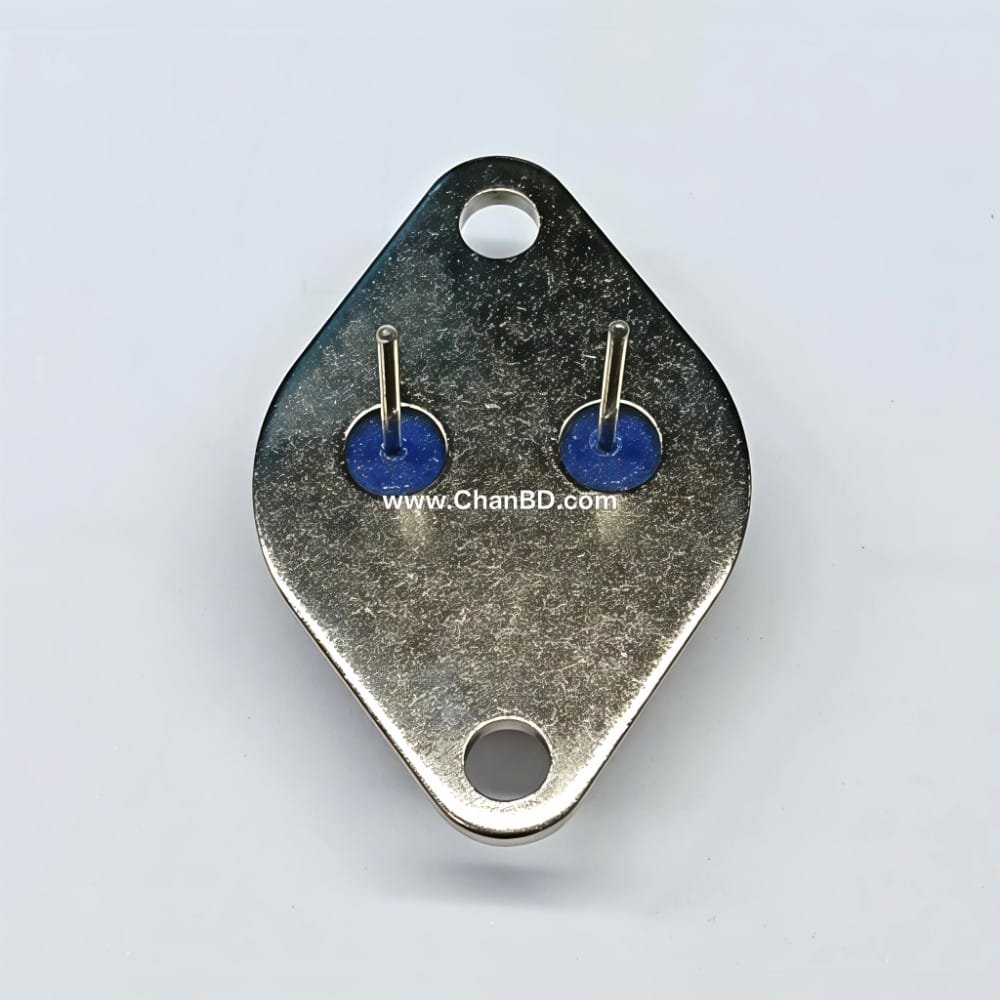

MJ15025G (ON) Metal Transistor TO3 (Original) Code: 03294165 - Image 2

MJ15025G (ON) Metal Transistor TO3 (Original) Code: 03294165

Name: MJ15025G (ON) Metal Transistor TO3 (Original) Code: 03294165
Brand: ON
SKU: 19984
Availability: InStock

ON

Original price was: 750.00৳ .Current price is: 700.00৳ .

Categories: ACCESSORIES, METAL TRANSISTOR, TRANSISTOR

Description
Reviews (0)

The MJ15025G is a high-power onsemi PNP silicon power transistor packaged in a metal TO-204 (TO-3) case, designed primarily for high-power audio amplifiers and linear applications.

Key Specifications

Transistor Type:PNP
Collector-Emitter Voltage :-250 V max
Continuous Collector Current :-16 A max
Total Power Dissipation :250 W
DC Current Gain :15 to 60
Transition Frequency :4 MHz minimum
Operating Temperature Range:-65°C to +200°C
Package Type:TO-204AA (commonly known as TO-3)

Applications & Features

Audio Amplifiers:Built for high-fidelity, high-power audio output stages.
Linear & Switching Controls:Used in disk head positioners and linear power regulators.
Complementary Pair:Pairs with the MJ15024G NPN transistor.
RoHS Compliant:The ‘G’ suffix indicates it is a lead-free, environmentally friendly version.
