The MUR1560 is an ultrafast recovery power rectifier diode handling up to 15 Amperes of forward current and 600 Volts of reverse voltage. It features a fast reverse recovery time of 35 to 60 ns and comes in a standard TO-220AC plastic package.

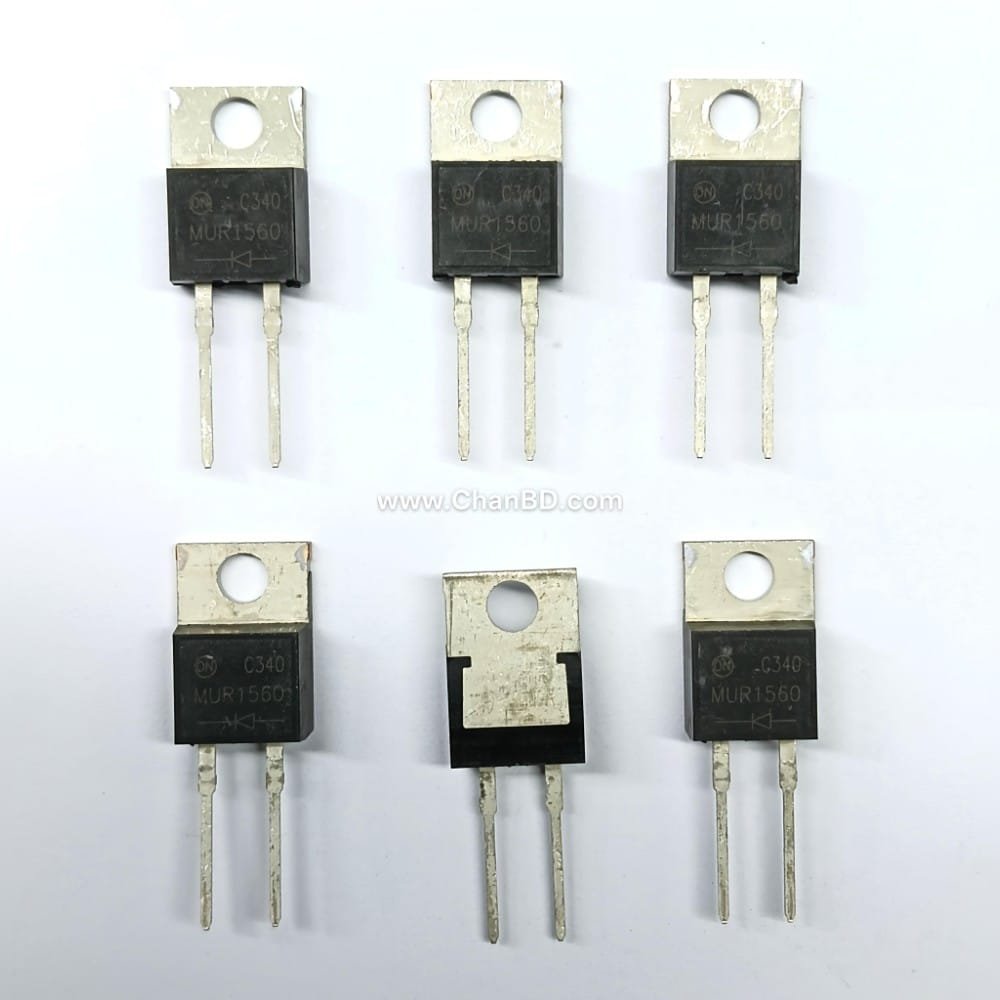

MUR1560G (ON) Transistor to-220 2leg Code: 07731434

Category: ACCESSORIES

Description
Reviews (0)

The MUR1560 is an ultrafast recovery power rectifier diode handling up to 15 Amperes of forward current and 600 Volts of reverse voltage. It features a fast reverse recovery time of 35 to 60 ns and comes in a standard TO-220AC plastic package.

Electrical & Technical Specifications

Average Forward Rectified Current: 15 A
Repetitive Peak Reverse Voltage :600 V
Maximum Forward Voltage Drop :2V to 1.5V (” 15A, 25°C)
Reverse Recovery Time :50 ns (typical) / 60 ns (max)
Max Forward Surge Current :100 A – 150 A (depending on manufacturer)
Operating Junction Temperature :Up to +175°C

Applications & Use Cases

Switching Power Supplies (SMPS):Used as output rectifiers and freewheeling diodes.
Inverters & Converters:Ideal for high-frequency power conversion circuits.
Motor Control Circuits:Acts as a snubber or clamp diode to suppress inductive voltage spikes.
Uninterruptible Power Supplies (UPS):High-efficiency energy steering.
