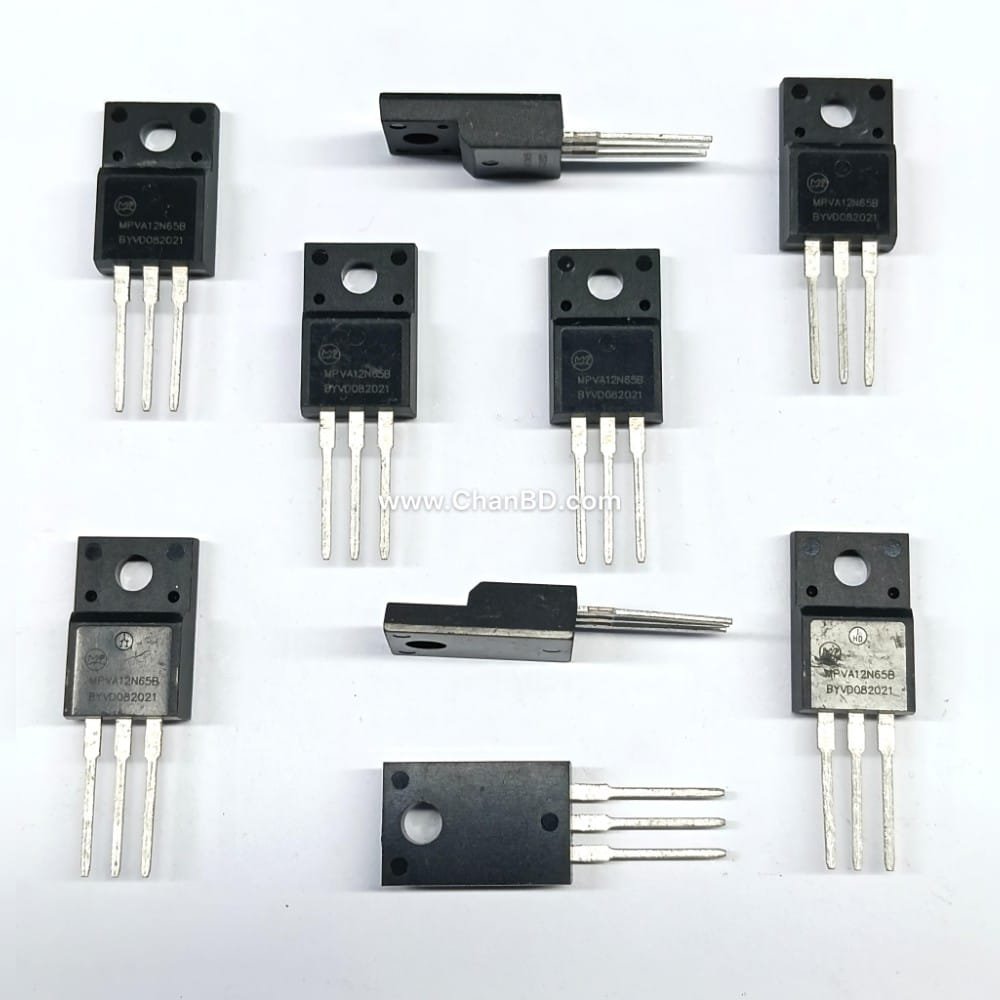

MPVA12n65B (MP) / 12N65 Mosfet Transistor TO-220F Code: 49593701

The 12N65 is a high-voltage, N-Channel enhancement-mode power MOSFET designed for high-efficiency, high-speed switching applications. It handles a maximum continuous drain current of 12A and a blocking voltage of 650V.

Key Specifications

• Drain-Source Voltage :650 V
• Continuous Drain Current :12 A
• On-Resistance :Typically between 0.64 Ω and 0.85 Ω
• Gate-Source Voltage:± 30 V
• Pulsed Drain Current :48 A
• Operating Temperature Range:-55°C to +150°C
• Package Types:Commonly found in TO-220, TO-220F (insulated), and TO-263 packages

Common Applications

Due to its low gate charge and fast switching capabilities, the 12N65 is primarily used in:

• Switch-Mode Power Supplies (SMPS)
• AC/DC adaptors and battery chargers
• Power Factor Correction (PFC) circuits
• DC-DC converters and motor controls
