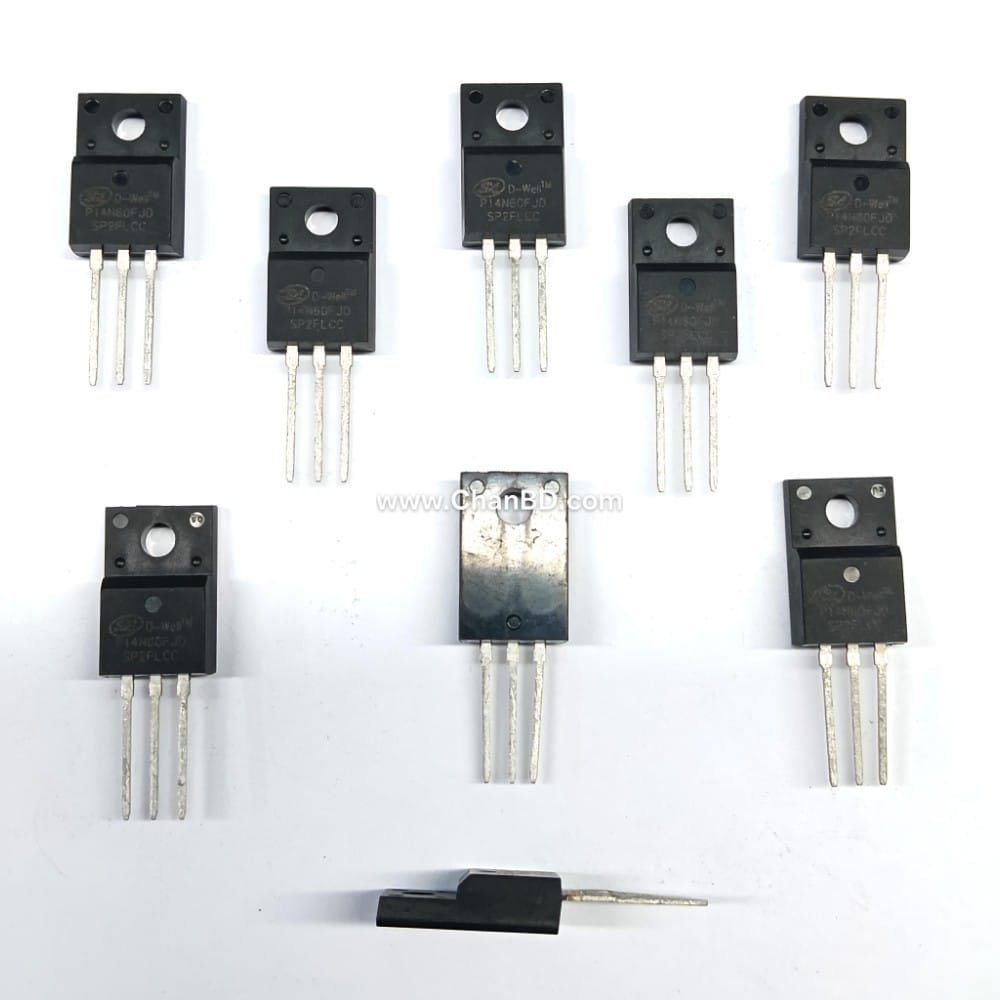

P14N60F / 14N60 (SC) /14N60C Mosfet Transistor TO-220F Code: 93482107

The P14N60 (also commonly referenced as 14N60) is a standard N-channel power MOSFET designed for high-voltage and high-speed switching applications. It is widely used in switch-mode power supplies (SMPS), adapters, and motor control circuits for its fast switching times and rugged avalanche characteristics.

Key Electrical Specifications

• Drain-Source Voltage :600V
• Continuous Drain Current :14A
• Drain-Source On-Resistance :Typically between 0.4Ω to 0.65Ω
• Gate-Source Voltage :± 30V
• Pulsed Drain Current :28A
• Power Dissipation :~38W to 50W (depending on the exact package/manufacturer)
• Operating Junction Temperature :-55°C to +150°C

Physical & Design Details

• Technology:Often manufactured using proprietary planar stripe or VDMOS technologies, which helps reduce conduction loss and improve avalanche energy.
• Package Type:Generally housed in a TO-220 or TO-220F package, making it easy to mount onto a heatsink.

Replacements & Equivalents

If you are looking to substitute a P14N60 / 14N60, you can typically use equivalent N-Channel MOSFETs of the same rating, such as:

• FQPF14N60C
• 12N60 (if a 12A rating is acceptable)
• K12A60
